Measuring Stages MT 120

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_mt_120.pdf

Description

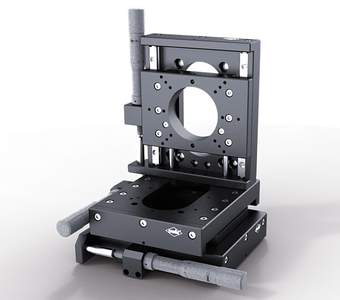

The MT 120 measuring stages are available with 25 or 50 mm measuring range, with a central opening and with central or lateral micrometer. The MT 120 measuring stages can be mounted slide-on-slide for XY combinations, the 50 mm opening is retained within the entire adjustment range. For vertical applications the versions with lateral micrometer are recommended, the gravitational force bearing to the slide does not work against readjusting springs.

  • measuring ranges 25 mm or 50 mm
  • compact design
  • preloaded precision crossed roller bearing guides
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • with central or lateral micrometers
  • aperture 50 mm
  • XYZ mounting without additional Z angle is possible

Option
- vacuum-prepared versions available

Art. Nbr. Type Title
31.124.2581 MT 120-25-D56-X-MS

measuring stage X, 25 mm measuring range, with central micrometer

31.124.2582 MT 120-25-D56-XY-MS

measuring stage XY, 25 mm measuring range, with central micrometers

31.124.2583 MT 120-25-D56-XYZ-MS

measuring stage XYZ, 25 mm measuring range, with central micrometers

31.124.2591 MT 120S-25-D56-X-MS

measuring stage X, 25 mm measuring range, with lateral micrometer

31.124.2592 MT 120S-25-D56-XY-MS

measuring stage XY, 25 mm measuring range, with lateral micrometers

31.124.2593 MT 120S-25-D56-XYZ-MS

measuring stage XYZ, 25 mm measuring range, with lateral micrometers

31.124.5081 MT 120-50-D56-X-MS

measuring stage X, 50 mm measuring range, with central micrometer

31.124.5082 MT 120-50-D56-XY-MS

measuring stage XY, 50 mm measuring range, with central micrometers

31.124.5083 MT 120-50-D56-XYZ-MS

measuring stage XYZ, 50 mm measuring range, with central micrometers

31.124.5091 MT 120S-50-D56-X-MS

measuring stage X, 50 mm measuring range, with lateral micrometer

31.124.5092 MT 120S-50-D56-XY-MS

measuring stage XY, 50 mm measuring range, with lateral micrometers

31.124.5093 MT 120S-50-D56-XYZ-MS

measuring stage XYZ, 50 mm measuring range, with lateral micrometers
