Magnetic Bases MAGF

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_magf.pdf

Description

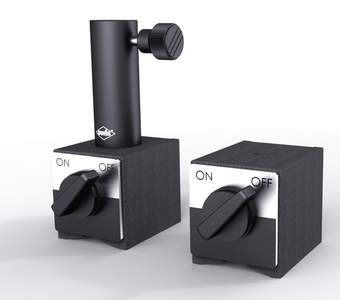

The switchable MAGF magnetic bases give you the possibility to fasten various setup components to ferromagnetic surfaces securely.

Through nearly complete interruption of the magnetic current, the magnetic bases can be positioned easily
with little effort when deactivated. When switched on, they ensure maximum stability due to an adhesive force
of 700 N.

Corresponding SL 12/16 columns for pins STF 15 can be screwed onto the bases using the M8 thread.

  • switchable
  • extreme adhesive force
Art. Nbr. Type Title
22.108.0000 MAGF

switchable magnetic bases

22.108.0050 MAGF 12/16-50

magnetic bases with column, 50 mm high

22.108.0075 MAGF 12/16-75

magnetic bases with column, 75 mm high

22.108.0100 MAGF 12/16-100

magnetic bases with column, 100 mm high
