Linear Precision Stages LPTM 30

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_lptm_30.pdf

Description

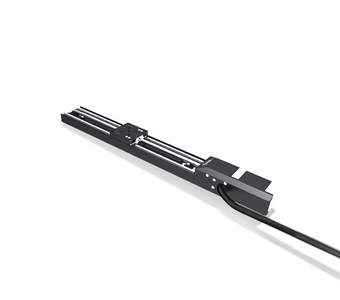

The Linear Precision Stages LPTM 30 are characterized by their compact design. With a width of 30 mm and a working height of 16 mm they are shallower and narrower than a matchbox. However these stages have a load capacity of 60 N and are available in travel of 50 mm, 100 mm and 150 mm.

The special guides provide optimal motion as well as a high load capacity. The backlash-free, ground fine-thread spindle guarantee a high accurate movement.

All aluminium parts have a top quality black anodized protective coating.

  • travel 50 mm, 100 mm or 150 mm
  • designed for industrial application
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • ground fine-thread spindle with low backlash
  • carriage with ground and stainless recirculating ball bearing guides
  • Hall-effect or mechanical limit switches
  • 2-phase step motor or DC motor with encoder
  • with OWISid

Option
- vacuum-prepared versions available

Art. Nbr. Type Title
41.033.05AM LPTM 30-50-HiSM

linear precision stage, 50 mm travel, with step motor and Hall-effect limit switches

41.033.10AM LPTM 30-100-HiSM

linear precision stage, 100 mm travel, with step motor and Hall-effect limit switches

41.033.15AM LPTM 30-150-HiSM

linear precision stage, 150 mm travel, with step motor and Hall-effect limit switches

41.033.05BM LPTM 30-50-MiSM

linear precision stage, 50 mm travel, with step motor and mechanical limit switches

41.033.10BM LPTM 30-100-MiSM

linear precision stage, 100 mm travel, with step motor and mechanical limit switches

41.033.15BM LPTM 30-150-MiSM

linear precision stage, 150 mm travel, with step motor and mechanical limit switches

41.033.05GV LPTM 30-50-HiDS

linear precision stage, 50 mm travel, with DC servo motor and Hall-effect limit switches

41.033.10GV LPTM 30-100-HiDS

linear precision stage, 100 mm travel, with DC servo motor and Hall-effect limit switches

41.033.15GV LPTM 30-150-HiDS

linear precision stage, 150 mm travel, with DC servo motor and Hall-effect limit switches

41.033.15WV LPTM 30-150-MiDS

linear precision stage, 150 mm travel, with DC servo motor and mechanical limit switches

41.033.10WV LPTM 30-100-MiDS

linear precision stage, 100 mm travel, with DC servo motor and mechanical limit switches

41.033.05WV LPTM 30-50-MiDS

linear precision stage, 50 mm travel, with DC servo motor and mechanical limit switches

41.033.0001 MONT-LPT(M)30-100-150-Z

Z assembly bracket for linear precision stages of the LPT(M) 30 with 100 mm and
150 mm travel, without assembly

41.033.0002 MONT-LPT(M)30-50-Z

Z assembly bracket for linear precision stages of the LPT(M) 30 with 50 mm travel, without assembly

41.033.0004 MONT-LPT(M)30-XY

XY assembly kit for linear precision stages of the LPT(M) 30 series, without assembly

41.033.0014 MONT-LPT(M)30-XY-MM

XY assembly kit for linear precision stages of the LPT(M) 30 series, with assembly

90.999.0002 SST.F2

grease for guides, 5 ml, in applicator

90.999.0008 SST.F8

grease for gears, 5 ml, in applicator
