Linear Precision Stages LPT 30

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_lpt_30.pdf

Description

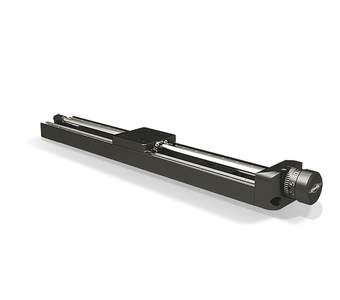

The Linear Precision Stages LPT 30 are characterized by their compact design. With a width of 30 mm and a working height of 16 mm they are shallower and narrower than a matchbox. However these stages have a load capacity of 100N and are available in travels of 50mm, 100mm and 150mm.

The fixing device is easy to handle at the rotating knob. With this the position can be fixed at the spindle.

Of course all aluminium parts of the LPT30 have a top quality black anodized protective coating.

  • travel 50 mm, 100 mm or 150 mm
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • fine-thread spindle with low backlash
  • carriage with ground and stainless recirculating ball bearing guides
  • fixing device to fix the adjusted position
  • ways of installing:
    – on optical table with thread adapter M6-M3
    – XY, XZ or XYZ assembly possible

Option
- vacuum-prepared versions available

Art. Nbr. Type Title
31.033.0050 LPT 30-50

linear precision stages, 50 mm travel

31.033.0100 LPT 30-100

linear precision stages, 100 mm travel

31.033.0150 LPT 30-150

linear precision stages, 150 mm travel

41.033.0001 MONT-LPT(M)30-100-150-Z

Z assembly bracket for linear precision stages of the LPT(M) 30 with 100 mm and
150 mm travel, without assembly

41.033.0002 MONT-LPT(M)30-50-Z

Z assembly bracket for linear precision stages of the LPT(M) 30 with 50 mm travel, without assembly

41.033.0004 MONT-LPT(M)30-XY

XY assembly kit for linear precision stages of the LPT(M) 30 series, without assembly

41.033.0014 MONT-LPT(M)30-XY-MM

XY assembly kit for linear precision stages of the LPT(M) 30 series, with assembly

98.010.0603 GRH M6-M3-SET 10ST

10 x thread reducing bushs M6 to M3
