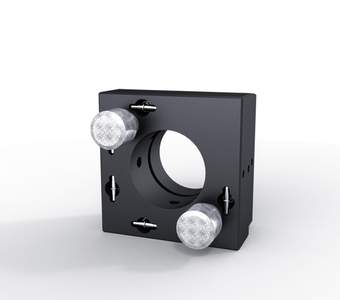

Laser Mirror Mounts LSH 65

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_lsh_65.pdf

Description

The laser mirror mounts LSH 65 are high-precision transmitting mounts specially conceived for use as resonator mirror mounts. Using a RT 65 slide and a S 65 system rail, a highly stable laser resonator can be set up.

The adjustment mounts have a central hole with a 35 mm diameter to hold mounted optics or other components. The horizontal and vertical angles can be adjusted independently of one another. The maximum tilt is 6° (±3°).

Fine-thread screws with a 0.35 mm pitch are available as adjustment elements. On demand, short fine-thread screws with hexagon socket and locking are available for applications in serial devices.

  • for use with SYS 65
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • suitable for mounting laser resonators
  • ways of installing
    - for use with SYS 65 direct on slide RT 65
    - on pin
Art. Nbr. Type Title
16.250.3501 LSH 65

laser mirror mounts, ø 35 mm, for mounted optics, with fine-thread screws

16.021.0020 RT 65-20-R

slide SYS 65, 20 mm, with knurled screw

16.022.0020 RT 65-20-M4

slide RT 65, 20 mm, with hexagon socket head cap screw

STF 15

pin 15 - s. product information STF 15
