Laser Adjustments LJ 80

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_lj_80.pdf

Description

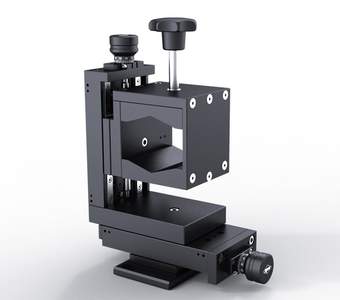

The LJ 80 laser adjustments consist of a prismatic clamping device which can be adjusted linearly in two axes, perpendicularly to the beam direction and swing around two axes.

The linear travel motion is transferred by an ergonomic adjusting knob to a fine-thread spindel. A clamping device prevents drifting off in the adjusted position.

The swivel movement of the two axes of rotation is implemented with the laterally attached mechanics, mounted backflash-free. Using fine-thread screws with knureld head, a sensitive rotating motion is generated, preloaded with spring tension.

  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • 2 linear and 2 swivel axes
  • high stability
  • recirculating ball bearings
  • fine-thread spindle with fixing device
  • way of installing
    - on optical table via slotted holes for M6 in a 100 mm distance
Art. Nbr. Type Title
26.805.2057 LJ 80-D54-XY

laser adjustments for lasers ø 18.5 up to 54 mm,

with 2 linear and 2 rotation axes
