LST-9EC

Available In Stock

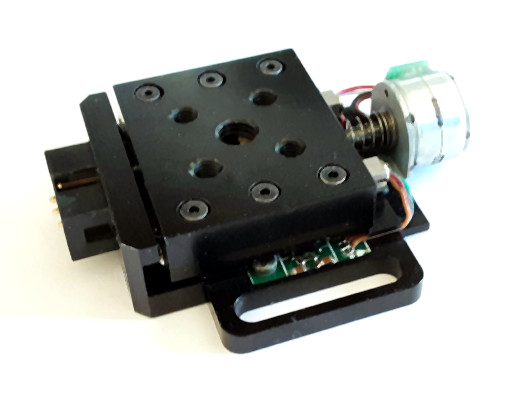

Micrometer precision linear stage. Motorized, miniature - from $595 -

Special motorized and electronics

Mass:  150 grams
DATASHEET LST-9EC_DS.pdf

Images


Description



- Max. travel range: 9mm
- Encoder feedback: Linear optical
- Design resolution: 1.33μm
- Bidirectional backlash: 1.33μm
- Limit switches: Yes (optical)
- Bi-directional repeatability: 1.33μm
- Stepper drive: continuous wave
- Voltage range: -9-12V DC
- Max. normal load: 1lb
- Max. pushing load: 0.3lb
- Recommended controller: Included inside the body of the stage

Files

File NameSize
LST-9EC_DS.pdf59.67KB
