LS-10
Available In Stock
Linear Motorized Miniature XYZ stage -from $695.00 -
Special motorized and electronics
Mass: 100 grams
DATASHEET: LS-10DSa.pdf
Images
Description

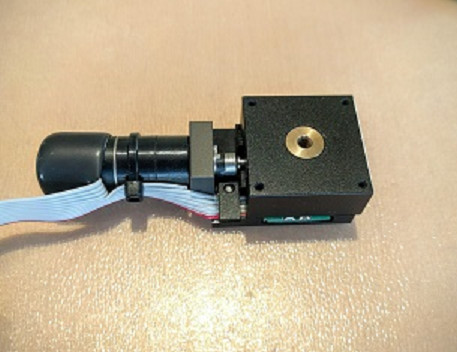

Miniature Motorized Linear Motion Stage with dovetail guiding construction

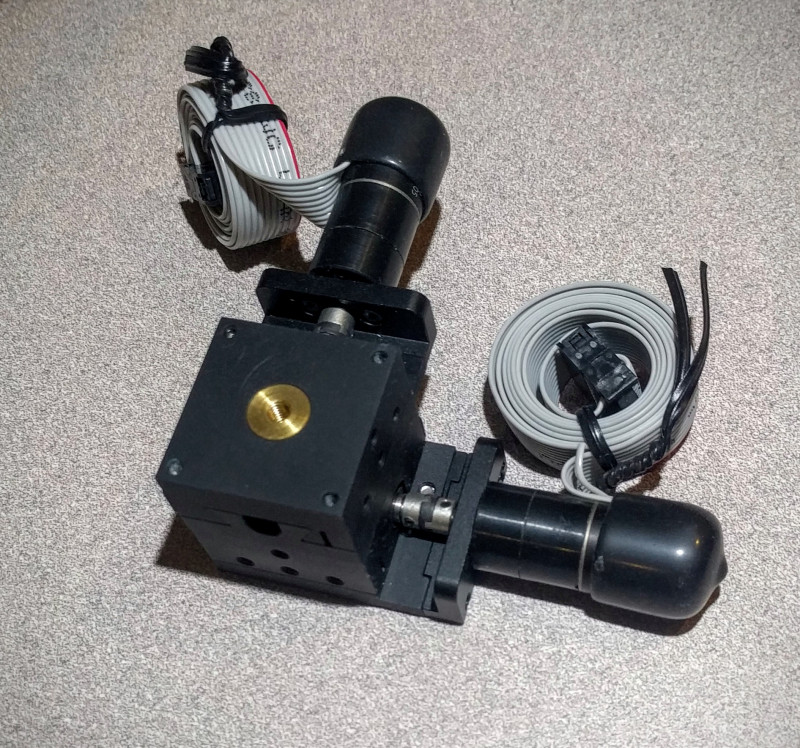

- Multi axis assembly: X, XY and XYZ. For Z axis an “L” bracket is used
- Travel range: Up to 10mm
- Achievable resolution: 0.25 micrometer (aprox.4000micro-steps/mm in open loop
- Motor type: 2 Phase Stepper gear head 15deg. full step (24steps/360deg)
- Motor Voltages: 5 -12V DC
- Motor current: Maximum 175mA
- Lead screw pitch: 0.25mm
- Yaw/Pitch: Not specified
- Bi-directional repeatability: 1.3 micrometer with linear encoder installed
- Maximum speed: 0.25mm/sec
- Maximum normal load: 5N (with CG on the center of moving platform)
- Limit switches: Optical
Recommended controller: SSQ-21 or USS-210
Option: Optical encoder with 1.3 micrometer resolution
- Achievable resolution: 0.25 micrometer (aprox.4000micro-steps/mm in open loop
- Motor type: 2 Phase Stepper gear head 15deg. full step (24steps/360deg)
- Motor Voltages: 5 -12V DC
- Motor current: Maximum 175mA
- Lead screw pitch: 0.25mm
- Yaw/Pitch: Not specified
- Bi-directional repeatability: 1.3 micrometer with linear encoder installed
- Maximum speed: 0.25mm/sec
- Maximum normal load: 5N (with CG on the center of moving platform)
- Limit switches: Optical
Recommended controller: SSQ-21 or USS-210
Option: Optical encoder with 1.3 micrometer resolution
