LDC-50
Available upon request

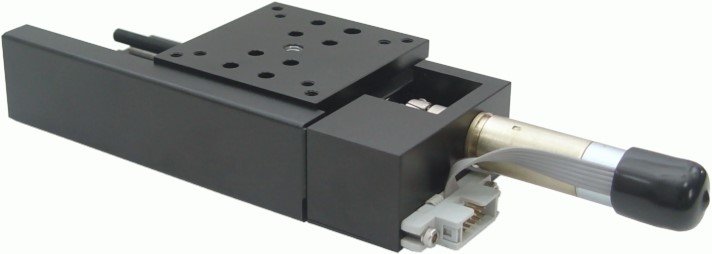

Linear stage
Special motorized and electronics
Mass: 544 grams
Dimensions: 7x3x1 inch
DATASHEET: LDC-50.pdf
Images
Description
- DC Servo or Stepper motorized stage.
- Travel range: 50mm
- Encoder feedback: Rotary incremental
- Design resolution: 0.005mm
- Limit switches: Hall effect or mechanical
- Recirculating ball bearings.
- Motor Voltage range: 0 to 24V
- Max. normal load: 40lb
- Max. pushing load: 2lb
- Design resolution: 0.005mm
- Limit switches: Hall effect or mechanical
- Recirculating ball bearings.
- Motor Voltage range: 0 to 24V
- Max. normal load: 40lb
- Max. pushing load: 2lb
Files
| File Name | Size | |
|---|---|---|
 | LDC-50.pdf | 177.05KB |
