Iris Diaphragms, totally closing and motorized IBM 65

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_ibm_65.pdf

Description

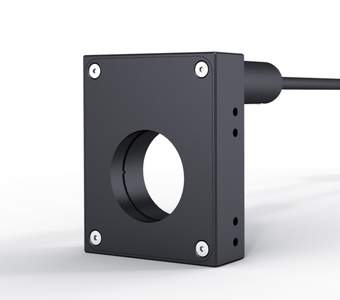

The IBM 65 totally closing iris diaphragms are the motorized versions of the manual IB-D54 iris diaphragms.

Their advantage is that they can be used in inaccessible places or closed devices, as they can be remote-controlled.

The motorized iris diaphragms come in a housing compatible with the system SYS 65, this means that they have an optical height of 32.5 mm.

The different aperture sizes are regulated with either 2-phase step motor with gear or with DC servo motor with encoder and gear. To indicate the end positions (open or closed), they are equipped with two limit switches.

The IBM 65 totally closing iris diaphragms have two lamella sets in 3.1 mm distance.

  • for use with SYS 65
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • aperture 0 up to 35 mm
  • step motor with gear or DC servo motor with encoder and gear
  • Hall-effect limit switches
  • with OWISid
  • ways of installing
    - on slide RT 65
    - with ADP 70-B on an optical table

Option
- vacuum-prepared versions available

Art. Nbr. Type Title
47.265.35AK IBM 65-D0-35-HíSM

iris diaphragm in cabinet, totally closing, with step motor

47.265.35GP IBM 65-D0-35-HiDS

iris diaphragm in cabinet , totally closing, with DC motor

24.900.7020 ADP 70-B

adapter plate to standard grid, 70 x 70 x 10 mm

16.021.0020 RT 65-20-R

slide for mounting into SYS 65, 20 mm, with knurled screw

16.022.0020 RT 65-20-M4

slide RT 65, 20 mm, with hexagon socket head cap screw
