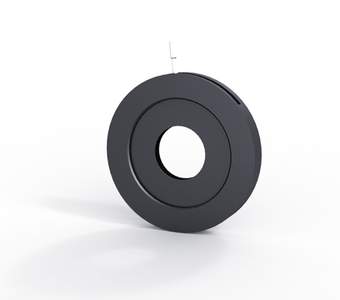

Iris Diaphragms IB-D54

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_ib_d54.pdf

Description

The IB-D54 totally closing iris diaphragms consist of two lamella sets with 3,1 mm distance. The aperture is adjustable from 0 mm up to 37 mm.

With the OHIB-D54-S65 holder for iris diaphragms it is possible to mount these diaphragms directly on a slide
RT 65 or on pins.

  • for use with SYS 65
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • totally closing, aperture 0 mm up to 37 mm
  • way of installing
    - with holder OHIB-D54-S65 on slide RT 65 or pin

Option
- vacuum-prepared versions available

Art. Nbr. Type Title
27.271.0037 IB-D54-0-37

iris diaphragms, totally closing, aperture ø 0 to 37 mm, without flange

25.460.0065 OHIB-D54-S65

holder for iris diaphragm IB-D54-0-37

16.021.0040 RT 65-40-R

slide RT 65, 40 mm, with knurled screw

16.022.0040 RT 65-40-M4

slide RT 65, 40 mm, with hexagon socket head cap screw ISO 4762

STF 15

pin 15 - s. product information STF 15
