Inserts with 1.035"-40 thread EINS-DSM1

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_eins_dsm1.pdf

Description

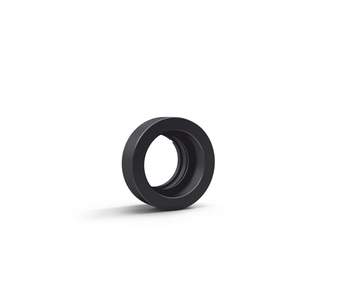

With the EINS-DSM1 inserts with 1.035"-40 thread external products can be mounted in the optic holders of the SYS 40 and SYS 65 beam handling systems. The inserts are fixed in the holders with 25 mm diameter of the SYS 40 system, with the 35 mm diameter the inserts were integrated in the holders of the SYS 65.

The EINS-DSM1 have on the one side an internal thread to mount the external products. On the other side, a mounted optic with 22.4 mm diameter - e.g. a filter or lens - can be retained and fixed with a clamping ring. This is also a part of delivery.

  • for use with SYS 40 or SYS 65
  • deformation-resistant aluminium
  • refection poor, black anodized
  • ways of installing
    - in transmitting mounts

Option
- non-magnetic or vacuum-prepared versions available

Art. Nbr. Type Title
26.130.1035 EINS-D35-D25-DSM1

insert with 1.035"-40 thread, external ø 25 mm and ø 35 mm, for unmounted optics with
ø 22.4 mm

26.204.xxxx TRANS 40x

transmitting mounts TRANS 40

26.206.035x TRANS 65L-D35-xxx

transmitting mounts TRANS 65L
