Holders with 1.035"-40 thread OH 40-DSM1, OH 65-DSM1

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_oh_40_65_dsm1.pdf

Description

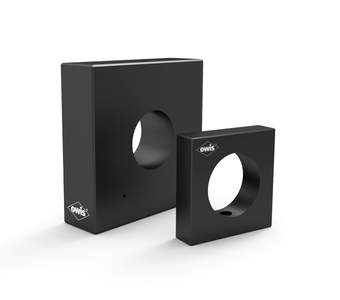

The holders OH 40-DSM1 and OH 65-DSM1 for the systems SYS 40 and SYS 65 respectively are furnished with a 1.035"-40 thread to integrate external products in this beam handling systems.

The holders for SYS 65 have on the one side an internal thread to mount the external products. On the other side, a mounted optic - e.g. a filter or lens - can be retained and fixed with a grub screw.

In addition to the fastening screw threads which are used for the mounting on slides, these holders have a central M6 thread for the mounting on pins STF 15.

  • for use with SYS 40 or SYS 65
  • deformation-resistant aluminium
  • refection poor, black anodized
  • ways of installing
    - on slide
    - on pin

Option
- non-magnetic and vacuum-prepared versions available

Art. Nbr. Type Title
14.130.1035 OH 40-DSM1

holder with 1,035"-40 thread, 40 x 40 x 10 mm, with aperture ø 25 mm

16.130.1035 OH 65-DSM1

holder with 1,035"-40 thread (8 mm deep), 65 x 65 x 20 mm, aperture ø 25 mm

14.021.0010 RT 40-10-R

slide SYS 40, 10 mm, with knurled screw

14.022.0010 RT 40-10-M3

slide SYS 40, 10 mm, with hexagon socket head cap screw

16.021.0020 RT 65-20-R

slide RT 65, 20 mm, with knurled screw

16.022.0020 RT 65-20-M4

slide RT 65, 20 mm, with hexagon socket head cap screw

STF 15

pin 15 - s. product information STF 15
