Holders for Unmounted Optics OHU 90-D

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_ohu_90-d.pdf

Description

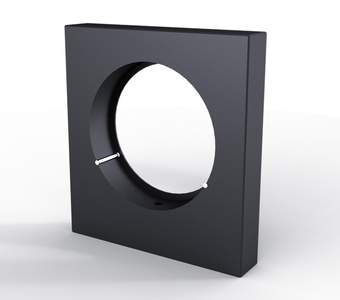

Using OHU 90-D holders for unmounted optics, unmounted optics, inserts, and adjustable inserts can be located in the beam path. The mounting diameters correspond to the external diameters of the most commonly used mounts.

All OHU 90-D optic holders have M4 threads for mounting on slides RT 90. All holders have an additional central M6 thread to be mounted on pins STF 15.

Holders with other diameters are available on request.

  • for use with SYS 90
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • for optics with ø 75 mm / 76,2 mm (3")
  • ways of installing
    - on slide RT 90
    - on pin

Option
- non-magnetic and vacuum-prepared versions available

Art. Nbr. Type Title
19.100.0076 OHU 90-D75

holders for unmounted optics with ø 75 mm / 76,2 mm (3")

19.021.0040 RT 90-40-R

slide SYS 90, 40 mm, with knurled screw

19.022.0040 RT 90-40-M6

slide SYS 90, 40 mm, with hexagon socket head cap screw

STF 15

pin 15 - s. product information STF 15
