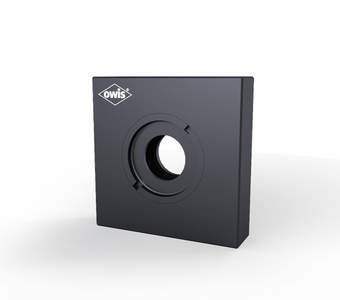

Holders for Unmounted Optics OHU 40-D

External URL owis.eu
DATASHEET pi_ohu_40-d.pdf

Description

Using OHU 40-D and OHU 65-D holders for unmounted optics, unmounted optics, inserts and adjustable inserts can be located in the beam path. The mounting diameters correspond to the external diameters of the most commonly used mounts.

All OHU 40-D optic holders have M2.5 threads for mounting on slides RT 40. All holders have an additional central M6 thread to be mounted on pins STF 15.

Holders with other diameters are available on request.

  • for use with SYS 40
  • deformation-resistant aluminium reflection-poor, black anodized
  • for optics with ø 12.5 mm / 12.7 mm (1/2") up to 31.5 mm
  • ways of installing
    - on slide RT 40
    - on pin

Option
- non-magnetic and vacuum-prepared versions available

Art. Nbr. Type Title
14.100.0013 OHU 40-D12

optic holders for unmounted optics with ø 12,5 mm / 12,7 mm (0,5")

14.100.0022 OHU 40-D22

optic holders for unmounted optics with ø 22.4 mm

14.100.0025 OHU 40-D25

optic holders for unmounted optics with ø 25 mm / 25,4 mm (1")

14.100.0032 OHU 40-D31

optic holders for unmounted optics with ø 31.5 mm

14.021.0010 RT 40-10-R

slide SYS 40, 10 mm, with knurled screw

14.022.0010 RT 40-10-M3

slide SYS 40, 10 mm, with hexagon socket head cap screw

STF 15

pin 15 - s. product information STF 15
