Holders for Mounted Optics OH 65-D

External URL owis.eu
DATASHEET pi_oh_65-d.pdf

Description

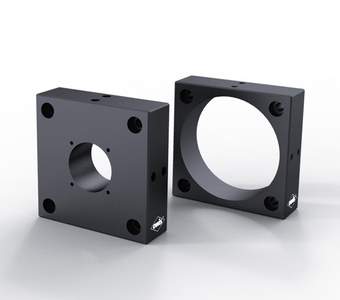

Mounted optics, inserts and adjustable inserts are located in position in the optical path with OH 65-D holders for mounted optics. The mounting diameters correspond to the external diameters of the most commonly used mounts.

All OH 65-D optic holders have M4 tapped holes for mounting on slides RT 65. The holders with hole diameter up to 45 mm have an additional central M6 tapped hole to be mounted on pins STF 15.

Holders with other diameters are available on request.

  • for use with SYS 65
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • 4 different mounting diameters
  • ways of installing
    - on slide RT 65
    - on pin

Option
- non-magnetic or vacuum-prepared versions available

Art. Nbr. Type Title
16.110.0000 OH 65-D0

optic holder without hole

16.110.0025 OH 65-D25

optic holder for ø 25 mm

16.110.0035 OH 65-D35

optic holder for ø 35 mm

16.110.0045 OH 65-D45

optic holder for ø 45 mm

16.110.0056 OH 65-D56

optic holder for ø 56 mm

16.021.0020 RT 65-20-R

slide SYS 65, 20 mm, with knurled screw

16.022.0020 RT 65-20-M4

slide RT 65, 20 mm, with hexagon socket head cap screw

STF 15

pin 15 - s. product information STF 15
