Holders for Mounted Optics OH 25-D

External URL owis.eu
DATASHEET pi_oh_25-d.pdf

Description

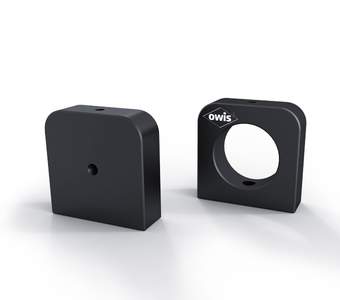

The OH 25-D holders for mounted optics locate mounted optics, inserts and adjustable inserts in the optical path. To mount them on slides RT 25, all OH 25-D have M2.5 threaded holes. Additionally, all holders have a M4 thread to put them on a pin.

A holder with center hole and tapping hole for M2.5 is available for OEM solutions.

The M2.5 clamping screw fixes the inserts in the holder for mounted optics with ø 16 mm. This screw is included in the scope of delivery.

Holders with other diameters on request.

  • for use with SYS 25
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • for mounts with ø 16 mm
  • ways of installing
    - on slide RT 25
    - with pin

Option
- non-magnetic or vacuum-prepared versions available

Art. Nbr. Type Title
12.110.0000 OH 25-D0

holders for mounted optics, with center hole and tapping hole for M2.5

12.110.0010 OH 25-D10

holders for mounted optics, with ø 10 mm

12.110.0013 OH-25-D13

holders for mounted optics, with ø 12.7 mm

12.110.0016 OH 25-D16

holders for mounted optics, with ø 16 mm

12.021.0008 RT 25-8-R

slide SYS 25, 8 mm, with knurled screw

12.022.0008 RT 25-8-M2,5

slide SYS 25, 8 mm, with hexagon socket head cap screw ISO 4762

21.115.4325 STF 15-25-AM4-3

pin adapter M6-M4
