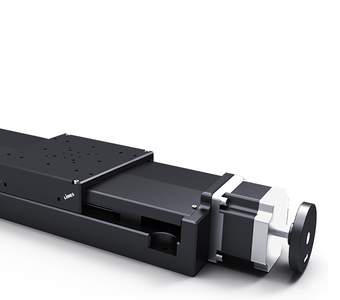

High-Precision Linear Stages with measuring system LIMES 170-IMS

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_limes_170-ims.pdf

Description

The LIMES 170-IMS linear stages are characterized by high precision, which is necessary for demanding R&D applications. Due to the integrated metal covering as well as their suitability for continuous operation, the LIMES linear stages are also for industrial applications. The integrated measurement system returns accurate position feedback with highest resolution.

The almost backlash-free guides provide optimal motion as well as a high load capacity. The ball screw is preloaded and ensures high-precision movement as well as a high life time.

The integrated metal covering protects the high-quality guides and ball screw.

All aluminium parts have a top quality black anodized protective coating.

  • travel up to 1500 mm
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • almost backlash-free ball screw
  • carriage with ground and stainless recirculating ball bearing guides
  • with integrated linear measuring system
  • Hall-effect limit switches
  • with metal covering
  • 2-phase step motor or DC motor
  • with OWISid

Options
- mechanical limit Switches
- brake
- vacuum-prepared versions available

Art. Nbr. Type Title
41.170.40AGM LIMES 170-400-HiSM-IMS

400 mm travel

41.170.60AGM LIMES 170-600-HiSM-IMS

600 mm travel

41.171.00AGM LIMES 170-1000-HiSM-IMS

1000 mm travel

41.171.50AGM LIMES 170-1500-HiSM-IMS

1500 mm travel

41.179.0061 MONT-LIMES 170-400-600-Z

Z assembly bracket for LIMES 170-400-600-xxx and NHL 170-x00-HiSM

90.999.0011 SST.F11

grease for spindle, 5 ml in applicator

90.999.0002 SST.F2

grease for guides, 5 ml in applicator
