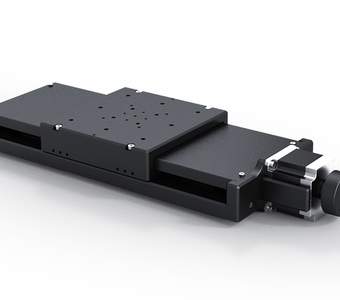

High-Precision Linear Stages with measuring system LIMES 150-IMS

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_limes_150-ims.pdf

Description

The LIMES 150-IMS linear stages are characterized by high precision, which is necessary for demanding R&D applications. Due to the integrated metal covering as well as their suitability for continuous operation, the LIMES linear stages are also for industrial applications. The integrated measurement system returns accurate position feedback with highest resolution.

The almost backlash-free guides provide optimal motion as well as a high load capacity. The ball screw is preloaded and ensures high-precision movement as well as a high life time.

The integrated metal covering protects the high-quality guides and ball screw.

All aluminium parts have a top quality black anodized protective coating.

  • travel up to 300 mm
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • almost backlash-free ball screw
  • carriage with ground and stainless recirculating ball bearing guides
  • with integratedlinear measuring system
  • Hall-effect limit switches
  • with metal covering
  • 2-phase step motor or DC motor
  • with OWISid

Options
- mechanical limit Switches
- brake
- vacuum-prepared versions available

Art. Nbr. Type Title
41.150.10AEM LIMES150-100-HiSM-IMS

100 mm travel

41.150.20AEM LIMES150-200-HiSM-IMS

200 mm travel

41.150.30AEM LIMES150-300-HiSM-IMS

300 mm travel

41.159.0021 MONT-LIMES 150-Z

Z Assembly Bracket for LIMES 150 with 100 mm, 200 mm and 300 mm travel

90.999.0011 SST.F11

grease for spindle, 5 ml in applicator
