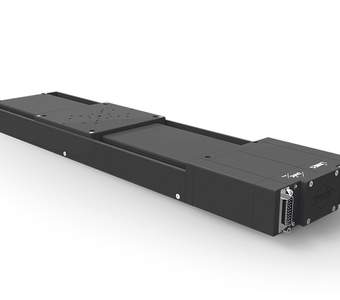

High-Precision Linear Stages with measuring system LIMES 124N-IMS

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_limes_124n-ims.pdf

Description

The linear stages of the series LIMES 124N-IMS with the integrated linear measuring system are characterized by high precision for highest positioning requirements. Due to the integrated metal covering as well as their suitability for continuous operation, the LIMES 124N-IMS linear stages are the optimal choice for R&D and industrial applications.

The almost backlash-free guides provide optimal motion as well as high load capacity.

The integrated measuring system provides an accurate position feedback with highest resolution at any time.

The high quality drive and the preloaded ball screw ensure high-precision movement as well as a high life time.

The integrated metal covering protects the high-quality guides and ball screw.

All aluminium parts have a top quality black anodized protective coating.

  • travel up to 290 mm
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • almost backlash-free ball screw
  • carriage with ground and stainless recirculating ball bearing guides
  • with integrated linear measuring system
  • Hall-effect or mechanical limit switches
  • with metal covering
  • 2-phase step motor or DC motor
  • with OWISid

Options
- brake
- vacuum-prepared versions available

Art. Nbr. Type Title
41.N29.03AVM LIMES 124N-30-HiSM-IMS

High-Precision Linear Stage with integrated linear measuring system, metal covering,30 mm travel, 2-phase step motor and Hall-effect limit Switches.

41.N29.08AVM LIMES 124N-80-HiSM-IMS

High-Precision Linear Stage with integrated linear measuring system, metal covering,

80 mm travel, 2-phase step motor and Hall-effect limit Switches.

41.N29.13AVM LIMES 124N-130-HiSM-IMS

High-Precision Linear Stage with integrated linear measuring system, metal covering,

130 mm travel, 2-phase step motor and Hall-effect limit Switches.

41.N29.18AVM LIMES 124N-180-HiSM-IMS

High-Precision Linear Stage with integrated linear measuring system, metal covering,

180 mm travel, 2-phase step motor and Hall-effect limit Switches.

41.N29.23AVM LIMES 124N-230-HiSM-IMS

High-Precision Linear Stage with integrated linear measuring system, metal covering,

230 mm travel, 2-phase step motor and Hall-effect limit Switches.

41.N29.29AVM LIMES 124N-290-HiSM-IMS

High-Precision Linear Stage with integrated linear measuring system, metal covering,

290 mm travel, 2-phase step motor and Hall-effect limit Switches.

41.N29.03BVM LIMES 124N-30-MiSM-IMS

High-Precision Linear Stage with integrated linear measuring system, metal covering,

30 mm travel, 2-phase step motor and mechanical limit Switches.

41.N29.08BVM LIMES 124N-80-MiSM-IMS

High-Precision Linear Stage with integrated linear measuring system, metal covering,

80 mm travel, 2-phase step motor and mechanical limit Switches.

41.N29.13BVM LIMES 124N-130-MiSM-IMS

High-Precision Linear Stage with integrated linear measuring system, metal covering,

130 mm travel, 2-phase step motor and mechanical limit Switches.

41.N29.18BVM LIMES 124N-180-MiSM-IMS

High-Precision Linear Stage with integrated linear measuring system, metal covering,

180 mm travel, 2-phase step motor and mechanical limit Switches.

41.N29.23BVM LIMES 124N-230-MiSM-IMS

High-Precision Linear Stage with integrated linear measuring system, metal covering,

230 mm travel, 2-phase step motor and mechanical limit Switches.

41.N29.29BVM LIMES 124N-290-MiSM-IMS

High-Precision Linear Stage with integrated linear measuring system, metal covering,

290 mm travel, 2-phase step motor and mechanical limit Switches.

41.N29.03GJM LIMES 124N-30-HiDS-IMS

High-Precision Linear Stage with integrated linear measuring system, metal covering,

30 mm travel, DC motor and Hall-effect limit Switches.

41.N29.08GJM LIMES 124N-80-HiDS-IMS

High-Precision Linear Stage with integrated linear measuring system, metal covering,

80 mm travel, DC motor and Hall-effect limit Switches.

41.N29.13GJM LIMES 124N-130-HiDS-IMS

High-Precision Linear Stage with integrated linear measuring system, metal covering,

130 mm travel, DC motor and Hall-effect limit Switches.

41.N29.18GJM LIMES 124N-180-HiDS-IMS

High-Precision Linear Stage with integrated linear measuring system, metal covering,

180 mm travel, DC motor and Hall-effect limit Switches.

41.N29.23GJM LIMES 124N-230-HiDS-IMS

High-Precision Linear Stage with integrated linear measuring system, metal covering,

230 mm travel, DC motor and Hall-effect limit Switches.

41.N29.29GJM LIMES 124N-290-HiDS-IMS

High-Precision Linear Stage with integrated linear measuring system, metal covering,

290 mm travel, DC motor and Hall-effect limit Switches.

41.N29.03WJM LIMES 124N-30-MiDS-IMS

High-Precision Linear Stage with integrated linear measuring system, metal covering,

30 mm travel, DC motor and mechanical limit Switches.

41.N29.08WJM LIMES 124N-80-MiDS-IMS

High-Precision Linear Stage with integrated linear measuring system, metal covering,

80 mm travel, DC motor and mechanical limit Switches.

41.N29.13WJM LIMES 124N-130-MiDS-IMS

High-Precision Linear Stage with integrated linear measuring system, metal covering,

130 mm travel, DC motor and mechanical limit Switches.

41.N29.18WJM LIMES 124N-180-MiDS-IMS

High-Precision Linear Stage with integrated linear measuring system, metal covering,

180 mm travel, DC motor and mechanical limit Switches.

41.N29.23WJM LIMES 124N-230-MiDS-IMS

High-Precision Linear Stage with integrated linear measuring system, metal covering,

230 mm travel, DC motor and mechanical limit Switches.

41.N29.29WJM LIMES 124N-290-MiDS-IMS

High-Precision Linear Stage with integrated linear measuring system, metal covering,

290 mm travel, DC motor and mechanical limit Switches.

41.N29.0001 MONT-L120-Z-L

Z Assembly Bracket Long for LT(M) 120 (F/M/P), LIMES 124N(-IMS), without assembly

41.N29.0005 MONT-L120-Z-K

Z Assembly Bracket Short for LT(M) 120 (F/M/P), LIMES 124N(-IMS), without assembly

90.999.0011 SST.F11

grease for spindle, 5 ml in applicator

90.999.0002 SST.F2

grease for guides, 5 ml, in applicator
