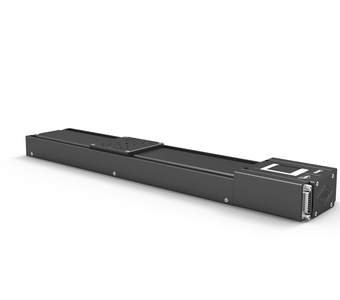

High-Precision Linear Stages LIMES 84N
OWIS Fine opto-mechanics
External URL: owis.eu
DATASHEET: pi_limes_84n.pdf
Description
The linear stages of the series LIMES 84N are characterized by high precision for very high positioning requirements. Due to the integrated metal covering as well as their suitability for continuous operation, the LIMES 84N linear stages are the optimal choice for R&D and industrial applications.
The almost backlash-free guides provide optimal motion as well as high load capacity.
The high quality drive and the preloaded ball screw ensure high-precision movement as well as a high life time.
The integrated metal covering protects the high-quality guides and ball screw.
All aluminium parts have a top quality black anodized protective coating.
- travel up to 270 mm
- deformation-resistant aluminium
- reflection-poor, black anodized
- almost backlash-free ball screw
- carriage with ground and stainless recirculating ballbearing guides
- Hall-effect or mechanical limit switches • with metal covering
- 2-phase step motor or DC motor with encoder
- with OWISid
Options
- brake
- vacuum-prepared versions available
| Art. Nbr. | Type | Title |
|---|---|---|
| 41.A89.04AV | LIMES 84N-45-HiSM | 45 mm travel |
| 41.A89.07AV | LIMES 84N-70-HiSM | 70 mm travel |
| 41.A89.12AV | LIMES 84N-120-HiSM | 120 mm travel |
| 41.A89.17AV | LIMES 84N-170-HiSM | 170 mm travel |
| 41.A89.27AV | LIMES 84N-270-HiSM | 270 mm travel |
| 41.A89.04BV | LIMES 84N-45-MiSM | 45 mm travel |
| 41.A89.07BV | LIMES 84N-70-MiSM | 70 mm travel |
| 41.A89.12BV | LIMES 84N-120-MiSM | 120 mm travel |
| 41.A89.17BV | LIMES 84N-170-MiSM | 170 mm travel |
| 41.A89.27BV | LIMES 84N-270-MiSM | 270 mm travel |
| 41.A89.04GJ | LIMES 84N-45-HiDS | 45 mm travel |
| 41.A89.07GJ | LIMES 84N-70-HiDS | 70 mm travel |
| 41.A89.12GJ | LIMES 84N-120-HiDS | 120 mm travel |
| 41.A89.17GJ | LIMES 84N-170-HiDS | 170 mm travel |
| 41.A89.27GJ | LIMES 84N-270-HiDS | 270 mm travel |
| 41.A89.04WJ | LIMES 84N-45-MiDS | 45 mm travel |
| 41.A89.07WJ | LIMES 84N-70-MiDS | 70 mm travel |
| 41.A89.12WJ | LIMES 84N-120-MiDS | 120 mm travel |
| 41.A89.17WJ | LIMES 84N-170-MiDS | 170 mm travel |
| 41.A89.27WJ | LIMES 84N-270-MiDS | 270 mm travel |
| 41.083.0001 | MONT-LT(M)80-Z | Z Assembly Bracket for LT(M) 80(P/F/M), LIMES 84N and NHL 84 series, without assembly |
| 41.083.0003 | MONT-LT(M)80-Z-L | Z assembly bracket for linear stages with 200 mm and 300 mm travel of the LT(M) 80(P/F/M), LIMES 84N and NHL 84 series, without assembly |
| 90.999.0011 | SST.F11 | grease for spindle, 5 ml in applicator |
| 90.999.0002 | SST.F2 | grease for guides, 5 ml, in applicator |
