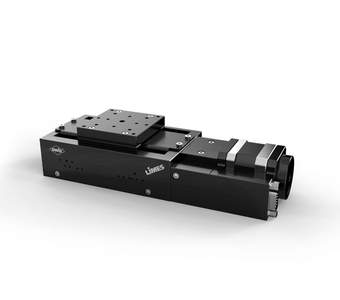

High-Precision Linear Stages LIMES 64

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_limes_64.pdf

Description

The LIMES 64 linear stages are characterized by high precision, which is necessary for demanding R&D applications. Due to the integrated metal covering as well as their suitability for continuous operation, the LIMES linear stages are the optimal choice for industrial applications.

The almost backlash-free guides provide optimal motion as well as a high load capacity. The ball screw is preloaded and ensures high‑precision movement as well as a high life time.

The integrated metal covering protects the high-quality guides and ball screw.

All aluminium parts have a top quality black anodized protective coating.

  • travel up to 140 mm
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • almost backlash-free ball screw
  • carriage with ground and stainless recirculating ball bearing guides
  • Hall-effect or mechanical limit switches
  • with metal covering
  • 2-phase step motor or DC motor with encoder
  • with OWISid

Options
- brake
- vacuum-prepared versions availabl

Art. Nbr. Type Title
41.069.20AC LIMES 64-20-HSM

high-precision linear stage, with step motor and Hall-effect limit switches, 20 mm travel

41.069.45AC LIMES 64-45-HSM

high-precision linear stage with step motor and Hall-effect limit switches, 45 mm travel

41.069.65AC LIMES 64-65-HSM

high-precision linear stage with step motor and Hall-effect limit switches, 65 mm travel

41.069.90AC LIMES 64-90-HSM

high-precision linear stage with step motor and Hall-effect limit switches, 90 mm travel

41.069.14AC LIMES 64-140-HSM

high-precision linear stage with step motor and Hall-effect limit switfches, 140 mm travel

41.069.20BC LIMES 64-20-MSM

high-precision linear stage with step motor and mechanical limit switches, 20 mm travel

41.069.45BC LIMES 64-45-MSM

high-precision linear stage with step motor and mechanical limit switches, 45 mm travel

41.069.65BC LIMES 64-65-MSM

high-precision linear stage with step motor and mechanical limit switches, 65 mm travel

41.069.90BC LIMES 64-90-MSM

high-precision linear stage with step motor and mechanical limit switches, 90 mm travel

41.069.14BC LIMES 64-140-MSM

high-precision linear stage with step motor and mechanical limit swiches, 140 mm travel

41.069.20GE LIMES 64-20-HiDS

high-precision linear stage with DC servo motor and Hall-effect limit switches, 20 mm travel

41.069.45GE LIMES 64-45-HiDS

high-precision linear stage with DC servo motor and Hall-effect limit switches, 45 mm travel

41.069.65GE LIMES 64-65-HiDS

high-precision linear stage with DC servo motor and Hall-effect limit switches, 65 mm travel

41.069.90GE LIMES 64-90-HiDS

high-precision linear stage with DC servo motor and Hall-effect limit switches, 90 mm travel

41.069.14GE LIMES 64-140-HiDS

high-precision linear stage with DC servo motor and Hall-effect limit switches, 140 mm travel

41.069.20WE LIMES 64-20-MiDS

high-precision linear stage with DC servo motor and mechanical limit switches, 20 mm travel

41.069.45WE LIMES 64-45-MiDS

high-precision linear stage with DC servo motor and mechanical limit switches, 45 mm travel

41.069.65WE LIMES 64-65-MiDS

high-precision linear stage with DC servo motor and mechanical limti switches, 65 mm travel

41.069.90WE LIMES 64-90-MiDS

high-precision linear stage with DC servo motor and mechanical limit switches, 90 mm travel

41.069.14WE LIMES 64-140-MiDS

high-precision linear stage with DC servo motor and mechanical limit switches, 140 mm travel

41.067.6440 LMS-LIMES 64-40

linear measuring system for LIMES 64-45-xxx, accuracy class ±3 μm/m, resolution 0.1 μm

41.067.6455 LMS-LIMES 64-55

linear measuring system for LIMES 64-65-xxx, accuracy class ±3 μm/m, resolution 0.1 μm

41.067.6490 LMS-LIMES 64-90

linear measuring system for LIMES 64-90-xxx, accuracy class ±3 μm/m, resolution 0.1 μm

41.063.0001 MONT-LT(M) 60-Z

Z assembly bracket, for LT 60, LTM 60, LTM 60P, F and M, LIMES 60 and LIMES 64

41.083.0004 MONT-LT(M)-XY

XY assembly kit for LT, LTM and LIMES, without assembly, not

for P versions

41.083.0014 MZB-LT(M)-XY-MM

XY assembly kit for LT, LTM and LIMES, with assembly, not

for P versions

90.999.0011 SST.F11

grease for spindle, 5 ml in applicator

90.999.0002 SST.F2

grease for guides, 5 ml, in applicator
