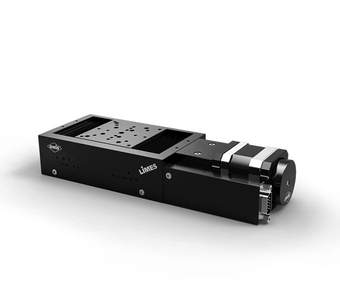

High-Precision Linear Stages LIMES 60
OWIS Fine opto-mechanics
External URL: owis.eu
DATASHEET: 2ceb7e88_pi-limes-60.pdf
Description
The LIMES 60 linear stages are characterized by high precision, which is necessary for demanding R&D applications. Due to the integrated bellows as well as their suitability for continuous operation, the LIMES linear stages are the optimal choice for industrial applications.
The almost backlash-free guides provide optimal motion as well as a high load capacity. The ball screw is preloaded and ensures high-precision movement as well as a high life time.
The integreated bellow protects the high-quality guides and ball screw.
All aluminium parts have a top quality black anodized protective coating.
- travel up to 105 mm
- deformation-resistant aluminium
- reflection-poor, black anodized
- almost backlash-free ball screw
- carriage with ground and stainless recirculating ball bearing guides
- Hall-effect or mechanical limit switches
- with bellows
- 2-phase step motor or DC motor with encoder
- with OWISid
Options
- brake
- vacuum-prepared versions available
| Art. Nbr. | Type | Title |
|---|---|---|
| 41.068.20AC | LIMES 60-20-HSM |
high-precision linear stage with 20 mm travel, 2-phase step motor and Hall-effect limit switches |
| 41.068.40AC | LIMES 60-40-HSM |
high-precision linear stage with 40 mm travel, 2-phase step motor and Hall-effect limit switches |
| 41.068.50AC | LIMES 60-50-HSM |
high-precision linear stage with 50 mm travel, 2-phase step motor and Hall-effect limit switches |
| 41.068.70AC | LIMES 60-70-HSM |
high-precision linear stage with 70 mm travel, 2-phase step motor and Hall-effect limit switches |
| 41.068.10AC | LIMES 60-100-HSM |
high-precision linear stage with 105 mm travel, 2-phase step motor and Hall-effect limit switches |
| 41.068.20BC | LIMES 60-20 MSM |
high-precision linear stage with 20 mm travel, 2-phase step motor and mechanical limit switches |
| 41.068.40BC | LIMES 60-40 MSM |
high-precision linear stage with 40 mm travel, 2-phase step motor and mechanical limit switches |
| 41.068.50BC | LIMES 60-50 MSM |
high-precision linear stage with 50 mm travel, 2-phase step motor and mechanical limit switches |
| 41.068.70BC | LIMES 60-70 MSM |
high-precision linear stage with 70 mm travel, 2-phase step motor and mechanical limit switches |
| 41.068.10BC | LIMES 60-100 MSM |
high-precision linear stage with 105 mm travel, 2-phase step motor and mechanical limit switches |
| 41.068.20GE | LIMES 60-20-HiDS |
high-precision linear stage with 20 mm travel, DC motor with encoder and Hall-effect limit switches |
| 41.068.40GE | LIMES 60-40-HiDS |
high-precision linear stage with 40 mm travel, DC motor with encoder and Hall-effect limit switches |
| 41.068.50GE | LIMES 60-50-HiDS |
high-precision linear stage with 50 mm travel, DC motor with encoder and Hall-effect limit switches |
| 41.068.70GE | LIMES 60-70-HiDS |
high-precision linear stage with 70 mm travel, DC motor with encoder and Hall-effect limit switches |
| 41.068.10GE | LIMES 60-100-HiDS |
high-precision linear stage with 105 mm travel, DC motor with encoder and Hall-effect limit switches |
| 41.068.20WE | LIMES 60-20-MiDS |
high-precision linear stage with 20 mm travel, DC motor with encoder and mechanical limit switches |
| 41.068.40WE | LIMES 60-40-MiDS |
high-precision linear stage with 40 mm travel, DC motor with encoder and mechanical limit switches |
| 41.068.50WE | LIMES 60-50-MiDS |
high-precision linear stage with 50 mm travel, DC motor with encoder and mechanical limit switches |
| 41.068.70WE | LIMES 60-70-MiDS |
high-precision linear stage with 70 mm travel, DC motor with encoder and mechanical limit switches |
| 41.068.10WE | LIMES 60-100-MiDS |
high-precision linear stage with 105 mm travel, DC motor with encoder and mechanical limit switches |
| 41.067.0040 | LMS-LIMES 60-40 |
linear measuring system for LIMES 60-40-xxx, accuracy class ± 3 µm/m, resolution 0.1 µm |
| 41.087.0050 | LMS-LIMES 60-50/80-50 |
linear measuring system for LIMES 60-50-xxx, accuracy class ± 3 µm/m, resolution 0.1 µm |
| 41.087.0100 | LMS-LIMES 80-100/60-100 |
linear measuring system for LIMES 60-100-xxx, accuracy class ± 3 µm/m, resolution 0.1 µm |
| 41.063.0001 | MONT-LT(M) 60-Z |
Z assembly bracekt for LT 60, LTM 60, LTM 60P, F andM, LIMES 60 and LIMES 64, without assembly |
| 41.083.0004 | MONT LT(M)-XY |
XY assembly kit for LT, LTM and LIMES, without assembly, not for P versions |
| 41.083.0014 | MZB-LT(M)-XY-MM |
XY assembly kit for LT, LTM and LIMES, with assembly, not for P versions |
| 90.999.0011 | SST.F11 |
grease for spindle, 5 ml in applicator |
| 90.999.0002 | SST.F2 |
grease for guides, 5 ml, in applicator |
