High-Precision Linear Stages LIMES 44
OWIS Fine opto-mechanics
External URL: owis.eu
DATASHEET: pi_limes_44.pdf
Description

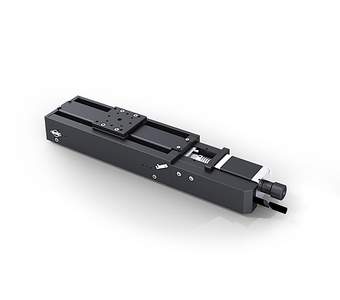

The slim LIMES 44 linear stages are characterized by high precision. Due to the integrated metal covering as well as their suitability for continuous operation, the LIMES linear stages are the optimal choice for industrial applications.
The almost backlash-free guides provide optimal motion as well as a high load capacity. The ball screw is preloaded and ensures high‑precision movement as well as a high life time.
All aluminium parts have a top quality black anodized protective coating.
- travel up to 85 mm
- deformation-resistant aluminium
- reflection-poor, black anodized
- almost backlash-free ball screw
- carriage with ground and stainless recirculating ball bearing guides
- Hall-effect or mechanical limit switches
- with metal covering
- 2-phase step motor or DC motor with encoder
- with OWISid
Option
- vacuum-prepared versions available
| Art. Nbr. | Type | Title |
|---|---|---|
| 41.049.25AN | LIMES 44-25-HiSM | high-precision linear stage, 25 mm travel, with step motor and Hall-effect limit switches |
| 41.049.40AN | LIMES 44-40-HiSM | high-precision linear stage, 40 mm travel, with step motor and Hall-effect limit switches |
| 41.049.65AN | LIMES 44-65-HiSM | high-precision linear stage, 65 mm travel, with step motor and Hall-effect limit switches |
| 41.049.85AN | LIMES 44-85-HiSM | high-precision linear stage, 85 mm travel, with step motor and Hall-effect limit switches |
| 41.049.25BN | LIMES 44-25-MiSM | high-precision linear stage, 25 mm travel, with step motor and mechanical limit switches |
| 41.049.40BN | LIMES 44-40-MiSM | high-precision linear stage, 40 mm travel, with step motor and mechanical limit switches |
| 41.049.65BN | LIMES 44-65-MiSM | high-precision linear stage, 65 mm travel, with step motor and mechanical limit switches |
| 41.049.85BN | LIMES 44-85-MiSM | high-precision linear stage, 85 mm travel, with step motor and mechanical limit switches |
| 41.049.25GE | LIMES 44-25-HiDS | high-precision linear stage, 25 mm travel, with DC servo motor and Hall-effect limit switches |
| 41.049.40GE | LIMES 44-40-HiDS | high-precision linear stage, 40 mm travel, with DC servo motor and Hall-effect limit switches |
| 41.049.65GE | LIMES 44-65-HiDS | high-precision linear stage, 65 mm travel, with DC servo motor and Hall-effect limit switches |
| 41.049.85GE | LIMES 44-85-HiDS | high-precision linear stage, 85 mm travel, with DC servo motor and Hall-effect limit switches |
| 41.049.25WE | LIMES 44-25-MiDS | high-precision linear stage, 25 mm travel, with DC servo motor and mechanical limit switches |
| 41.049.40WE | LIMES 44-40-MiDS | high-precision linear stage, 40 mm travel, with DC servo motor and mechanical limit switches |
| 41.049.65WE | LIMES 44-65-MiDS | high-precision linear stage, 65 mm travel, with DC servo motor and mechanical limit switches |
| 41.049.85WE | LIMES 44-85-MiDS | high-precision linear stage, 85 mm travel, with DC servo motor and mechanical limit switches |
| 41.045.0001 | MONT-LT(M) 45-Z | Z assembly bracket for linear stages of the VT 45, LT 45, LTM 45, LTM 45M as well as LIMES 44 series |
| 41.045.0004 | MONT-LT(M) 45-XY |
XY assembly kit for LT 45, LTM 45, LTM 45M and LIMES 44, without assembly |
| 41.045.0014 | MONT-LT(M) 45-XY-MM |
XY assembly kit for LT 45, LTM 45, LTM 45M and LIMES 44, with assembly |
| 90.999.0002 | SST.F2 | grease for guides, 5 ml, in applicator |
