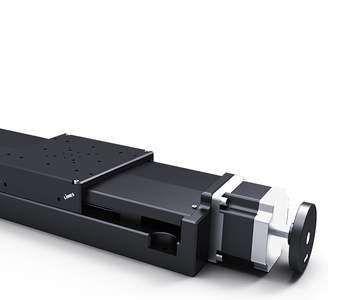

High-Precision Linear Stages LIMES 170

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_limes_170.pdf

Description

The LIMES 170 linear stages are characterized by high precision, which is necessary for demanding R&D applications. Due to the integrated metal covering as well as their suitability for continuous operation, the LIMES linear stages are also for industrial applications.

The almost backlash-free guides provide optimal motion as well as a high load capacity. The ball screw is preloaded and ensures high-precision movement as well as a high life time.

The integrated metal covering protects the high-quality guides and ball screw.

All aluminium parts have a top quality black anodized protective coating.

  • travel up to 1500 mm
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • almost backlash-free ball screw
  • carriage with ground and stainless recirculating ball bearing guides
  • Hall-effect limit switches
  • with metal covering
  • 2-phase step motor or DC motor with encoder
  • with OWISid

Options
- mechanical limit switches
- brake
- vacuum-prepared versions available

Art. Nbr. Type Title
41.170.40AG LIMES 170-400-HiSM

high-precision linear stage with 400 mm travel, 2-phase step motor and Hall-effect limit switches

41.170.60AG LIMES 170-600-HiSM

high-precision linear stage with 600 mm travel, 2-phase step motor and Hall-effect limit switches

41.171.006G LIMES 170-1000-HSM

high-precision linear stage with 1000 mm travel, 2-phase step motor and Hall-effect limit switches

41.171.506G LIMES 170-1500-HSM

high-precision linear stage with 1500 mm travel, 2-phase step motor and Hall-effect limit switches

41.170.40UL LIMES 170-400-HiDS

high-precision linear stage with 400 mm travel, DC motor with encoder and Hall-effect limit switches

41.170.60UL LIMES 170-600-HiDS

high-precision linear stage with 600 mm travel, DC motor with encoder and Hall-effect limit switches

41.171.00UL LIMES 170-1000-HiDS

high-precision linear stage with 1000 mm travel, DC motor with encoder and Hall-effect limit switches

41.171.50UL LIMES 170-1500-HiDS

high-precision linear stage with 1500 mm travel, DC motor with encoder and Hall-effect limit switches

41.169.0400 LMS-LIMES 170-400

linear measuring system for LIMES 170-400-xxx, accuracy class ± 3 µm/m, resolution 0.1 µm

41.169.0600 LMS-LIMES 170-600

linear measuring system for LIMES 170-600-xxx, accuracy class ± 3 µm/m, resolution 0.1 µm

41.169.1000 LMS-LIMES 170-1000

linear measuring system for LIMES 170-1000-xxx, accuracy class ± 3 µm/m, resolution 0.1 µm

41.179.0061 MONT-LIMES 170-400-600-Z

Z assembly bracket for LIMES 170-400-600-xxx and NHL 170-x00-HiSM

90.999.0011 SST.F11

grease for spindle, 5 ml in applicator

90.999.0002 SST.F2

grease for guides, 5 ml, in applicator
