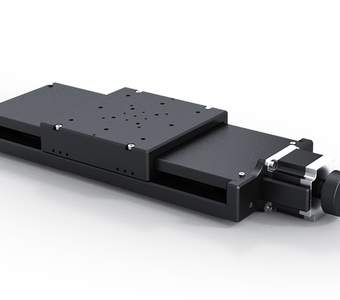

High-Precision Linear Stages LIMES 150

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_limes_150.pdf

Description

The LIMES 150 linear stages are characterized by high precision, which is necessary for demanding R&D applications. Due to he integrated metal covering as well as their suitability for ontinuous operation, the LIMES linear stages are also for industrial applications.

The almost backlash-free guides provide optimal motion as well as a high load capacity. The ball screw is preloaded and ensures highprecision movement as well as a high life time.

The integrated metal covering protects the high-quality guides and ball screw.

All aluminium parts have a top quality black anodized protective coating.

  • travel up to 300 mm
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • almost backlash-free ball screw
  • carriage with ground and stainless recirculating ball bearing guides
  • Hall-effect limit switches
  • with metal covering
  • 2-phase step motor or DC motor with encoder
  • with OWISid

Options
– mechanical limit switches
– brake
– vacuum-prepared versions available

Art. Nbr. Type Title
41.150.10AE LIMES 150-100-HiSM

high-precision linear stages, 100 mm travel,  with step motor and Hall-effect limit switches

41.150.20AE LIMES 150-200-HiSM

high-precision linear stages, 200 mm travel, with step motor and Hall-effect limit switches

41.150.30AE LIMES 150-300-HiSM

high-precision linear stages, 100 mm travel, with step motor and Hall-effect limit switches

41.159.0021 MONT-LIMES 150-Z

Z Assembly Bracket for LIMES 150 with 100 mm, 200 mm and 300 mm travel

90.999.0011 SST.F11

grease for spindle, 5 ml, in applicator
