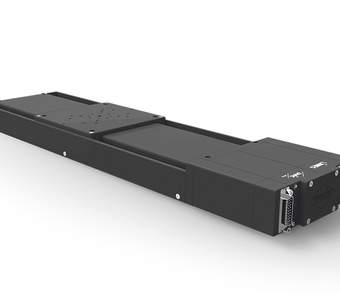

High-Precision Linear Stages LIMES 124N

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_limes_124n.pdf

Description

The linear stages of the series LIMES 124N are characterized by high precision for very high positioning requirements. Due to the integrated metal covering as well as their suitability for continuous operation, the LIMES 124N linear stages are the optimal choice for R&D and industrial applications.

The almost backlash-free guides provide optimal motion as well as high load capacity.

The high quality drive and the preloaded ball screw ensure high-precision movement as well as a high life time.

The integrated metal covering protects the high-quality guides and ball screw.

All aluminium parts have a top quality black anodized protective coating.

  • travel up to 290 mm
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • almost backlash-free ball screw
  • carriage with ground and stainless recirculating ballbearing guides
  • Hall-effect or mechanical limit switches
  • with metal covering
  • 2-phase step motor or DC motor with encoder
  • with OWISid

Options
- brake
- vacuum-prepared versions available

Art. Nbr. Type Title
41.N29.03AV LIMES 124N-30-HiSM

High-Precision Linear Stage with metal covering, 30 mm travel, 2-phase step motor and Hall-effect limit Switches.

41.N29.08AV LIMES 124N-80-HiSM

High-Precision Linear Stage with metal covering, 80 mm travel, 2-phase step motor and Hall-effect limit Switches.

41.N29.13AV LIMES 124N-130-HiSM

High-Precision Linear Stage with metal covering, 130 mm travel, 2-phase step motor and Hall-effect limit Switches.

41.N29.18AV LIMES 124N-180-HiSM

High-Precision Linear Stage with metal covering, 180 mm travel, 2-phase step motor and Hall-effect limit Switches.

41.N29.23AV LIMES 124N-230-HiSM

High-Precision Linear Stage with metal covering, 230 mm travel, 2-phase step motor and Hall-effect limit Switches.

41.N29.29AV LIMES 124N-290-HiSM

High-Precision Linear Stage with metal covering, 290 mm travel, 2-phase step motor and Hall-effect limit Switches.

41.N29.03BV LIMES 124N-30-MiSM

High-Precision Linear Stage with metal covering, 30 mm travel, 2-phase step motor and mechanical limit Switches.

41.N29.08BV LIMES 124N-80-MiSM

High-Precision Linear Stage with metal covering, 80 mm travel, 2-phase step motor and mechanical limit Switches.

41.N29.13BV LIMES 124N-130-MiSM

High-Precision Linear Stage with metal covering, 130 mm travel, 2-phase step motor and mechanical limit Switches.

41.N29.18BV LIMES 124N-180-MiSM

High-Precision Linear Stage with metal covering, 180 mm travel, 2-phase step motor and mechanical limit Switches.

41.N29.23BV LIMES 124N-230-MiSM

High-Precision Linear Stage with metal covering, 230 mm travel, 2-phase step motor and mechanical limit Switches.

41.N29.29BV LIMES 124N-290-MiSM

High-Precision Linear Stage with metal covering, 290 mm travel, 2-phase step motor and mechanical limit Switches.

41.N29.03GJ LIMES 124N-30-HiDS

High-Precision Linear Stage with metal covering, 30 mm travel, DC motor with encoder and Hall-effect limit Switches.

41.N29.08GJ LIMES 124N-80-HiDS

High-Precision Linear Stage with metal covering, 80 mm travel, DC motor with encoder and Hall-effect limit Switches.

41.N29.13GJ LIMES 124N-130-HiDS

High-Precision Linear Stage with metal covering, 130 mm travel, DC motor with encoder and Hall-effect limit Switches.

41.N29.18GJ LIMES 124N-180-HiDS

High-Precision Linear Stage with metal covering, 180 mm travel, DC motor with encoder and Hall-effect limit Switches.

41.N29.23GJ LIMES 124N-230-HiDS

High-Precision Linear Stage with metal covering, 230 mm travel, DC motor with encoder and Hall-effect limit Switches.

41.N29.29GJ LIMES 124N-290-HiDS

High-Precision Linear Stage with metal covering, 290 mm travel, DC motor with encoder and Hall-effect limit Switches.

41.N29.03WJ LIMES 124N-30-MiDS

High-Precision Linear Stage with metal covering, 30 mm travel, DC motor with encoder and mechanical limit Switches.

41.N29.08WJ LIMES 124N-80-MiDS

High-Precision Linear Stage with metal covering, 80 mm travel, DC motor with encoder and mechanical limit Switches.

41.N29.13WJ LIMES 124N-130-MiDS

High-Precision Linear Stage with metal covering, 130 mm travel, DC motor with encoder and mechanical limit Switches.

41.N29.18WJ LIMES 124N-180-MiDS

High-Precision Linear Stage with metal covering, 180 mm travel, DC motor with encoder and mechanical limit Switches.

41.N29.23WJ LIMES 124N-230-MiDS

High-Precision Linear Stage with metal covering, 230 mm travel, DC motor with encoder and mechanical limit Switches.

41.N29.29WJ LIMES 124N-290-MiDS

High-Precision Linear Stage with metal covering, 290 mm travel, DC motor with encoder and mechanical limit Switches.

41.N29.0001 MONT-L120-Z-L

Z Assembly Bracket Long for LT(M) 120 (F/M/P), LIMES 124N(-IMS), without assembly

41.N29.0005 MONT-L120-Z-K

Z Assembly Bracket Short for LT(M) 120 (F/M/P), LIMES 124N(-IMS), without assembly

90.999.0011 SST.F11

grease for spindle, 5 ml in applicator

90.999.0002 SST.F2

grease for guides, 5 ml, in applicator
