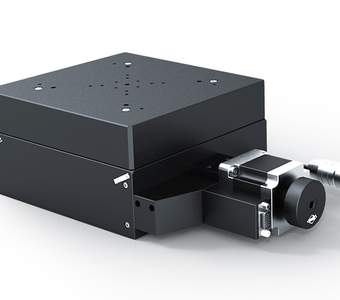

High-Precision Elevator Stages with measuring system HUMES 200-IMS

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_humes_200-ims.pdf

Description

The HUMES 200-IMS elevator stages provide high-precision positioning also for heavy loads. To achieve high accuracy, the HUMES 200-IMS are equipped with components made with high precision. Optionally an directly integrable measurement system returns accurate position feedback with highest resolution.

The spindle driven guiding system allows further mountings in the direction using horizontal travel range as well as upside down applications. The used miniature guides allow high loads. Travel ranges of 30 mm can be realized with high resolutions. Depending on the requirements of the application, a step motor or a DC motor version can be selected. For protection of the mechanics, Hall-effect or mechanical limit switches are integrated.

The top quality black anodized protective coating of the aluminium parts prevents reflections or stray light almost completely.

  • travel up to 30 mm
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • almost backlash-free ball screw
  • carriage with ground and stainless recirculating ball bearing guides
  • with integrated linear measuring system
  • Hall-effect or mechanical limit switches
  • 2-phase step motor or DC motor
  • with OWISid

Options
- brake
- vacuum-prepared versions available

Art. Nbr. Type Title
42.208.30AEM HUMES 200-30-HiSM-IMS

high-precision elevator stages with measuring system, 30 mm travel,
with step motor und and Hall-effect limit switches

42.208.30BEM HUMES 200-30-MiSM-IMS

high-precision elavator stages with measuring system, 30 mm travel,
with step motor and mechanical limit switches

42.208.30UKM HUMES 200-30-HiDS-IMS

high-precision elevator stages with measuring system, 30 mm travel,
with DC servo motor and Hall-effect limit switches

42.208.30VKM HUMES 200-30-MiDS-IMS

high-precision elevator stages with measuring system, 30 mm travel,
with DC servo motor and mechanical limit switches

42.203.0000 MP-HTM200

mounting plate 212 x 212 x 10 mm

90.999.0011 SST.F11

grease for spindle, 5 ml in applicator

90.999.0002 SST.F2

grease for guides, 5 ml, in applicator
