High-Precision Elevator Stages HUMES 60

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_humes_60.pdf

Description

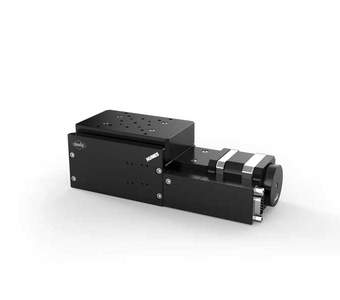

The HUMES 60 elevator stages provide high-precision positioning also for heavy loads. To achieve high accuracy, the HUMES 60 are equipped with components made with high precision. Optionally an directly integrable measurement system returns accurate position feedback with highest resolution.

The spindle driven guiding system allows further mountings in the direction using horizontal travel range as well as upside down applications. The used miniature guides allow high loads. Travel ranges of 12 mm can be realized with high resolutions. Depending on the requirements of the application, a step motor or a DC servo motor version can be selected. For protection of the mechanics, Hall-effect or mechanical limit switches are integrated.

The top quality black anodized protective coating of the aluminium parts prevents reflections or stray light almost completely.

  • travel up to 12 mm
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • almost backlash-free ball screw
  • carriage with ground and stainless recirculating ball bearing guides
  • Hall-effect or mechanical limit switches
  • 2-phase step motor or DC motor with encoder
  • with OWISid

Options
- version with integrated linear measuring system
- brake
- vacuum-prepared versions available

Art. Nbr. Type Title
42.068.12AC HUMES 60-12-HiSM

high-precision elavator stage, 12 mm travel, with step motor and Hall-effect limit switches

42.068.12BC HUMES 60-12-MiSM

high-precision elavator stage, 12 mm travel, with step motor and mechanical limit switches

42.068.12GE HUMES 60-12-HiDS

high-precision elevator stage, 12 mm travel, with DC servo motor and Hall-effect limit switches

42.068.12WE HUMES 60-12-MiDS

high-precision elevator stage, 12 mm travel, with DC servo motor and mechanical limit switches

31.999.0120 MP 120M

Mounting plates MP 120/170 (120 x 70 x 8 mm) for mounting measuring and translation stages as well as other OWIS components up to 90 or 140 mm in width on optical tables or grid plates with M6 threaded holes. The spacing between the holes is 100 mm.

90.999.0011 SST.F11

grease for spindles,5 ml, in applicator

90.999.0002 SST.F2

grease for guides, 5 ml, in applicator
