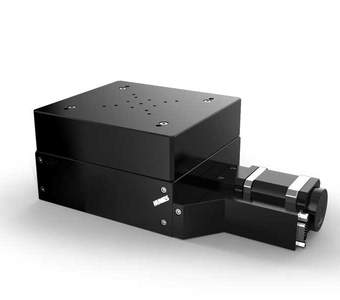

High-Precision Elevator Stages HUMES 150

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_humes_150.pdf

Description

The HUMES 150 elevator stages provide high-precision positioning also for heavy loads. To achieve high accuracy, the HUMES 150 are equipped with components made with high precision. Optionally an directly integrable measurement system returns accurate position feedback with highest resolution.

The spindle driven guiding system allows further mountings in the direction using horizontal travel range as well as upside down applications. The used miniature guides do still allow high loads. Travel ranges of 30 mm can be realized with high resolutions. Depending on the requirements of the application, a step motor or a DC servo motor version can be selected. For protection of the mechanics, Hall-effect or mechanical limit switches are integrated.

The top quality black anodized protective coating of the aluminium parts prevents reflections or stray light almost completely.

  • travel up to 30 mm
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • almost backlash-free ball screw
  • carriage with ground and stainless recirculating ball bearing guides
  • Hall-effect or mechanical limit switches
  • 2-phase step motor or DC motor with encoder
  • with OWISid

Options
- version with integrated linear measuring system
- brake
- vacuum-prepared versions available

Art. Nbr. Type Title
42.158.30AD HUMES 150-30-HiSM

high-precision elevator stages, 30 mm travel, with step motor und mechanical limit switches

42.158.30BD HUMES 150-30-MiSM

high-precision elevator stages, 30 mm travel, with step motor and mechanical limit switches

42.158.30GJ HUMES 150-30-HiDS

high-precision elevator stages, 30 mm travel, with DC servo motor and Hall-effect limit switches

42.158.30WJ HUMES 150-30-MiDS

high-precision elevator stages, 30 mm travel, with DC servo motor and mechanical limit switches

42.153.0000 MP-HTM150

mounting plate 162 x 162 x 10 mm

90.999.0011 SST.F11

grease for spindles, 5 ml in applicator

90.999.0002 SST.F2

grease for guides, 5 ml in applicator
