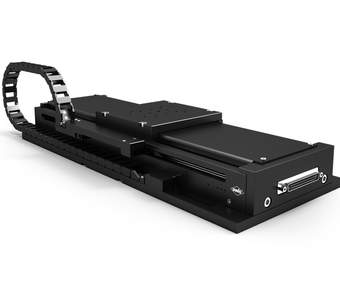

High-Precision, Dynamic Linear Stages HPL 120

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_hpl_120.pdf

Description

The HPL 120 linear stages are particularly characterized by the
integrated ironless linear motor. They provide high dynamic and high precise, as well as smooth and quiet running. As a standard they are equipped with a linear measuring system with a resolution of 0.2 μm.

The backlash-free guides further provide optimal motion as well as high-load capacity.

All aluminium parts have a top quality black anodized protective coating.

  • travel of 240 mm and 360 mm
  • deformation-resistant aluminium
  • reflection-poor,black anodized
  • with ironless linear motor
  • with integrated measuring system
  • carriage with ground and stainless recirculating ball bearing guides
  • high-precision Hall-effect limit switches
  • with metal covering
Art. Nbr. Type Title
41.131.24Q3 HPL 120-240-HLM

high-precision, dynamic linear stage HPL 120, 240 mm travel, with Hall-effect limit switches

41.131.36Q3 HPL 120-360-HLM

high-precision, dynamic linear stage, 360 mm travel, with Hall-effect limit switches

53.27.L300 KAB-79-SUB37-3

connecting cable to PS 90

90.999.0002 SST.F2

grease for guides, 5 ml in applicator
