Goniometers MOGO 65-40-65

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_mogo_65-40-65.pdf

Description

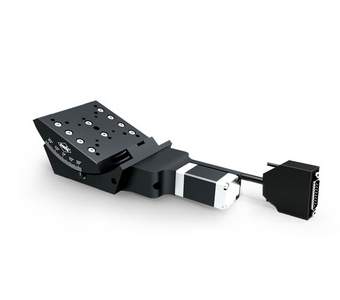

The MOGO 65-40-65 goniometer allows an adjustment range of ± 20° enabling the swivelling of setups around an axis at a height of 32,5 mm. The distance between the mounting surface and the rotation axis of 32,5 mm can be used for prisms, holders or other optics. The goniometer can be used in SYS 65 as well as in SYS 90. Depending on the requirements of the application, a step motor or a DC servo motor version can be selected. For protection of the mechanics, Hall-effect or mechanical limit switches are integrated.

The MOGO 65-40-65 goniometer provides high-precision positioning for high loads. To achieve high accuracy, the MOGO 65-40-65 is equipped with components made with high precision and a low-backlash worm gear drive.

The low-backlash worm gear drive allows further mountings in the direction using horizontal and vertical travel range, but also upside down applications. The special developed bearing system enables high loads with high resolution.

The top quality black anodized protective coating of the aluminium parts prevents reflections or stray light almost completely.

Manual versions, see chapter ‘Manual Positioning Systems’.

  • for use with SYS 65 and SYS 90
  • adjustment range ± 20°
  • designed for industrial application
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • specially developed bearing sytem
  • 2-phase step motor or DC servo motor with encoder
  • Hall-effect or mechanical limit switches
  • with OWISi

Option
- vacuum-prepared versions available

Art. Nbr. Type Title
45.A65.40AM MOGO 65-40-65-HiSM

height of rotating axis 65 mm

45.A65.40WV MOGO 65-40-65-MiDS

height of rotating axis 65 mm

45.A65.40BM MOGO 65-40-65-MiSM

height of rotating axis 65 mm

45.A65.40GV MOGO 65-40-65-HiDS

height of rotating axis 65 mm
