Goniometers GO 90

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_go_90.pdf

Description

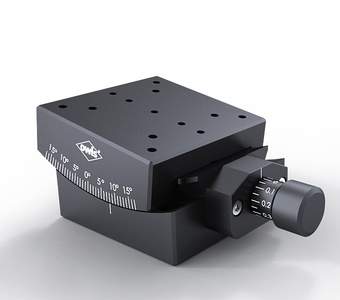

The GO 90 goniometers allow a precise adjustment of ±15° around a defined optical axis by means of a precision worm gear drive and adjustable dovetail guide.

The distance between the mounting surface and the rotation axis of 65 mm can be used for prisms, holders or other optics. To lock the position, the adjustment can be fixed with a clamping screw.

  • for use with SYS 90
  • deformationresistant aluminium
  • reflectionpoor, black anodized
  • adjustable dovetail guide
  • way of installing
    - on optical table

Option
- vacuum-prepared versions available

Art. Nbr. Type Title
35.090.0530 GO 90-W30

goniometers GO 90, adjustment range ±15°
