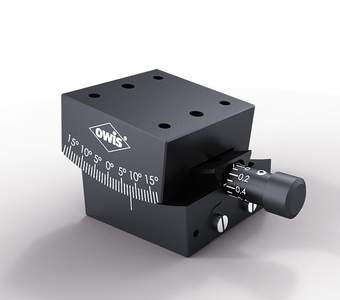

Goniometers GO 65S

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_go_65s.pdf

Description

The GO 65S goniometers allow a precise adjustment of ±15° around a defined optical axis by means of a precision worm gear drive and adjustable dovetail guide.

The distance between the mounting surface and the rotation axis of 32.5 mm can be used for prisms, holders or other optics. To lock the position, the adjustment can be fixed with a clamping screw.

In order to integrate these goniometers into the SYS 65 system, the adapter plates ADP 65B are necessary.

  • for use with SYS 65
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • adjustable dovetail guide
  • way of installing
    – on optical table with adapter plate ADP 65B

Option
- vacuum-prepared versions available

Art. Nbr. Type Title
35.065.0330 GO 65S-W30

goniometers, adjustment range ± 15°

19.021.0080 RT 90-80-R

slide SYS 90, 80 mm, with knurled screws

35.065.9000 ADP 65B

adapter plate 65 x 35 x 7.5 mm
