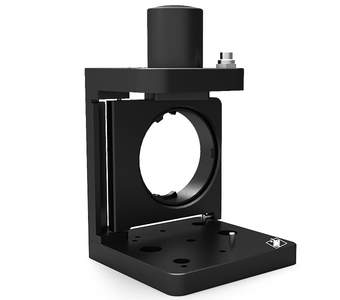

Flip Mirror Holders, motorized KSHM 90

External URL owis.eu
DATASHEET pi_kshm_90.pdf

Description

The KSHM 90 flip mirror holders can be applied in all orientations. They are the motorized variant of the manual KSH 90. As with the manual versions, the optics are also pressed against three stops by using two clamping plates. Therefore, transmitting optics up to ø 50 mm / 50.8 mm (2")  can be mounted into the mounts.

A mirror is flipped in a 45° angle into the beam in a switching time of approx. 1.5 s with the NG-E02 control unit. The repeatability is smaller than 100 µrad. With the help of disc springs, optics can be fine adjusted ±0.5° in theta, phi and Z.

With the RT 90-80 slides and the adapter plate ADP-RT90-KSH(M)90, the KSHM 90 can be mounted on
S 90 LL system rails directly into a SYS 90 system. To mount them on STF 15 pins, there is a central M6 thread in the bottom plate.

  • for use with SYS 90
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • for all orientations
  • for optics with ø 50 mm / 50,8 mm (2") and a thickness of 10 mm
  • mechanical limit switches
  • DC geared motor
  • ways of installing
    - on slide with adapter plate ADP-RT90-KSH(M)90
    - on pin

Optionen
- optics
- vacuum-prepared versions available

Art. Nbr. Type Title
46.090.51KN KSHM 90-RE-MDS

flip mirror holders with DC geared motor, with mechanical limit switches,
for optics with ø 50 mm / 50.8 mm (2"), deflection to the right

46.095.51KN KSHM 90-LI-MDS

flip mirror holders with DC geared motor, with mechanical limit switches,
for optics with ø 50 mm / 50.8 mm (2"), deflection to the left

19.021.0080 RT 90-80-R

slide SYS 90, 80 mm, with knurled screws

52.669.0012 NG-E02

control unit for flip mirror holders with TTL input, incl. switch, power supply unit and
connecting cable

26.090.0001 ADP-RT90-KSH(M)90

adapter plate to integrate KSH(M) 90 in SYS 90

STF 15

pin 15 - s. product information STF 15
