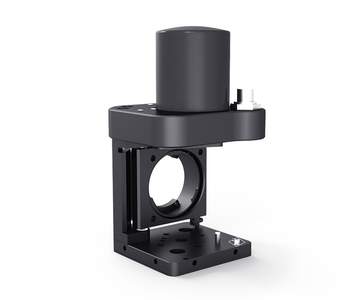

Flip Mirror Holders, motorized KSHM 40

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_kshm_40.pdf

Description

The KSHM 40 flip mirror holders are the motorized version of the KSH 40. The swing angle is 45° and the repeatability is smaller than 100 µrad. The switching time with the control unit NG-E02 is approx. 1.5 s. The KSHM 40 flip mirror holders can be applied in all orientations.

To fasten the optics in the KSHM 40, they are pressed against three stops by using two clamping plates. Thus, transmitting optics up to ø 25 mm / 25.4 mm (1") can be mounted into the mounts. These are fastened on a wobble plate, and set ±1.1° with the help of disc springs.

Different versions of flip mirror holders are available, some with deflection to the right, some with deflection to the left. With the two slides RT 40-10-R-WV 40, the KSHM 40 can be integrated directly on S 40 LL system rails in an existing SYS 40 system.

  • for use with SYS 40
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • for all orientations
  • for optics with ø 25 mm / 25.4 mm (1") and a thickness of 5 mm
  • mechanical limit switches
  • DC geared motor
  • ways of installing
    – on two slides RT 40-10-R-WV 40
    – on pin

Options
- optics
- vacuum-prepared versions available

Art. Nbr. Type Title
46.040.26KN KSHM 40-RE-MDS

flip mirror holders with DC geared motor, with mechanical limit switches, for optics
with ø 25 mm / 25.4 mm (1"), deflection to the right

46.045.26KN KSHM 40-LI-MDS

flip mirror holders with DC geared motor, with mechanical limit switches, for optics
with ø 25 mm / 25.4 mm (1"), deflection to the left

52.669.0012 NG-E02

control unit for flip mirror holders with TTL input, incl. switch, power supply unit and
connecting cable

14.021.0011 RT 40-10-R-WV 40

2 slides SYS 40, 10 mm, with knurled screw, for WV 40 and KSH(M) 40

STF 15

pin 15 - s. product information STF 15
