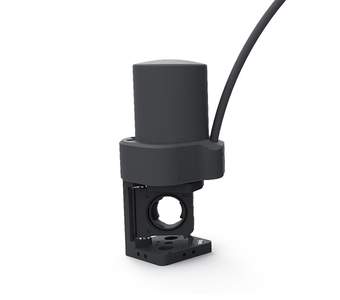

Flip Mirror Holders, motorized KSHM 25

External URL owis.eu
DATASHEET pi_kshm_25.pdf

Description

The KSHM 25 motorized flip mirror holders can be applied in all orientations.

To mount the optics in the KSHM 25, two clamping plates push these against three stops. They are also suited for transmitting optics up to ø12.5 mm / 12.7 mm (0.5").

The optics are fixed in the wobble plate and can be adjusted ±1° with the help of disc springs. The repeatability of the flip mechanism is smaller than 100 μrad.

With the two slides RT 25-9-ZM, the KSHM 25 can be integrated directly on S 25 LL system rails in an existing SYS 25 system. To do this, the two slides are screwed lateral with the flip mirror mount.

  • for use with SYS 25
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • for all orientations
  • for optics with ø12.5 mm / 12.7 mm (0.5") and a thickness of 3 mm
  • mechanical limit switches
  • DC geared motor
  • ways of installing
    – on two slides RT 25-9-ZM
    – on pin

Options
- optics
- vacuum-prepared versions available

Art. Nbr. Type Title
46.020.13KN KSHM 25-RE-MDS

flip mirror holders with DC geared motor, with mechanical limit switches, for optics
with ø 12,5 mm / 12.7 mm (0.5"), deflection to the right

46.025.13KN KSHM 25-LI-MDS

flip mirror holders with DC geared motor, with mechanical limit switches, for optics
with ø 12,5 mm / 12.7 mm (0.5"), deflection to the left

52.669.0012 NG-E02

control unit for flip mirror holders with TTL input, incl. switch, power supply unit and
connecting cable

12.021.0009 RT 25-9-ZM

two slides SYS 25, 9 mm, to mount KSH(M) 25 on S 25 LL, with knurled screws

21.115.4325 STF 15-25-AM4-3

pin adapter M6-M4
