Flip Mirror Holders KSH 65

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET 1cca10b4_pi_ksh_65_pdf.pdf

Description

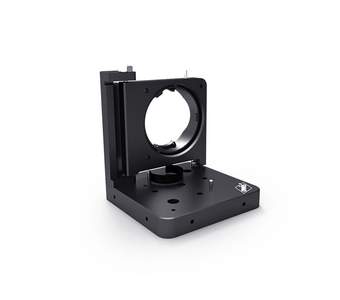

The KSH 65 flip mirror holders can be applied in all orientations, like all OWIS flip mirror holders. They are suited for mirrors and transmitting optics up to ø 38,1 mm / (1,5"). To mount them, two clamping plates push these against three stops and fix the optics in the wobble plate where they can be fine adjusted ±0.6° with the help of disc springs.

The flip morror mounts are swung in an 45° angle into the beam to deflect the light in an angle of 90°. Thereby, the repeatability is smaller than 100 μrad.

To integrate the KSH 65 in an existing SYS 65 system, the two slides RT 65-21-R-ZM are screwed lateral with the mount. Thus, the optical beam height of 65 mm is guaranteed.

All KSH 65 are also available in a motorized version - the KSHM 65.

  • for use with SYS 65
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • for all orientations
  • for optics with ø 38.1 mm / (1.5") and a thickness of 6 mm
  • ways of installing
    - on two slides RT 65-21-R-ZM
    - on pin

Options
- optics
- vacuum-prepared versions available

Art. Nbr. Type Title
26.060.3803 KSH 65-D38-RE-T

flip mirror holders for optics with ø 38,1 mm / (1.5"), deflection to the right

26.065.3803 KSH 65-D38-LI-T

flip mirror holders for optics with ø 38,1 mm / (1.5"), deflection to the left

16.021.0021 RT 65-21-R-ZM

two slides SYS 65, 20 mm, to mount KSH(M) 65 on S 65 LL, with knurled screws

26.306.9026 RZE-G65-E-D38-D26

reduction insert, 38.1 mm to ø 25 mm / 25.4 mm (1")

  STF 15

pin 15 - s. product information STF 15
