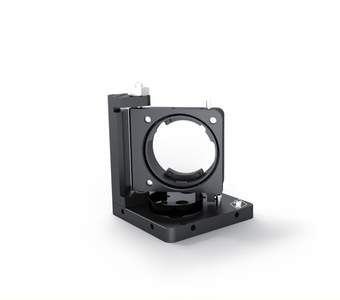

Flip Mirror Holders KSH 40

External URL owis.eu
DATASHEET pi_ksh_40.pdf

Description

The KSH 40 flip mirror holders can be applied in all orientations. The optics flip in the beam with the swivel plate in an 45° angle. Thus, the light path can be deflected in an 90° angle. The repeatability is smaller than 100 µrad.

To fasten the optics in the KSH 40, they are pressed against three stops by using two clamping plates. Thus, transmitting optics up to ø 25 mm / 25.4 mm (1") can be mounted into the mounts. These are fastened on a wobble plate, and set ±1.1° with the help of disc springs.

With the two slides RT 40-10-R-WV 40, the KSH 40 can be integrated directly on S 40 LL system rails in an existing SYS 40 system. To do this, the two slides are screwed lateral with the flip mirror holder.

All KSH 40 are also available in a motorized version – the KSHM 40.

  • for use with SYS 40
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • for all orientations
  • for optics with ø 25 mm/ 25.4 mm (1")
  • ways of installing
    – on two slides RT 40-10-R-WV 40
    – on pin

Options
- optics
- vacuum-prepared versions available

Art. Nbr. Type Title
26.040.2603 KSH 40-D26-RE-T

flip mirror holders for optics with ø 25 mm / 25.4 mm (1"), deflection to the right

26.045.2603 KSH 40-D26-LI-T

flip mirror holder for optics with ø 25 mm / 25.4 mm (1"), deflection to the left

14.021.0011 RT 40-10-R-WV 40

2 slides SYS 40, 10 mm, with knurled screw, for WV 40 and KSH(M) 40

STF 15

pin 15 - s. product information STF 15
