Fine-Thread Screws FGS 15

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_fgs_15.pdf

Description

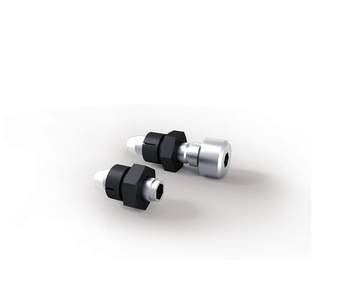

The OWIS® FGS 15 fine-thread screws have precisely finished spindles. As thrust piece a hardened steel ball is embedded in the spindle. Thus, these screws are particularly used as precise actuators.

The fine-thread screws differ in the spindle pitch of 0.15 mm from the fine-thread screws FGS with 0.25 mm and 0.35 mm pitch, respectively. The travel is 7.5 mm.

Also for the FGS 15 for applications with limited space, the finethread grub screws with hexagon socked FGS 15-6-5-oR were designed. Their travel range is 5 mm.

  • travel range 5 mm and 7.5 mm, depending on type
  • spindle pitch 0.15 mm

Option
- vacuum-prepared versions available

Art. Nbr. Type Title
91.141.1607 FGS 15-6-7.5

fine-thrad screw, 7.5 mm travel, mountin thread M6x0.5

91.144.1605 FGS 15-6-5-oR

fine-thread screw, 5 mm travel, mounting thread M6x0.5 (grub screw)

91.141.0001 KM-FGS 15-4-15

counter nut M4 x 0.15
