Filter Wheels FRM 65

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_frm_65.pdf

Description

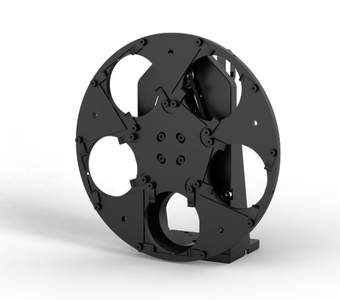

The FRM 65 motorized filter wheels are suited for automatic changing of five mounted and unmounted optics. Either 50 x 50 mm plates or mounted optics in ø 45 mm mounts or with 50.8 mm (2") can be used.

The base versions have a base plate for fastening. Mounted on the slide RT 65-4-90-M6, the filter wheels can be used in the SYS 65.

In terms of drive, a 2-phase step motor as well as a DC servo motor version is available. As a standard, a contactless Hall-effect reference switch is integrated.

Delivery does not include holder inserts for filters.

  • for use with SYS 65
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • 2-phase step motor or geared DC servo motor with encoder
  • Hall-effect reference switch
  • with OWISid
  • ways of installing
    - on slide RT 65
    - on pin

Option
- vacuum-prepared versions available

Art. Nbr. Type Title
46.605.456C FRM 65-5-D45-HSM

filter wheels with step motor and Hall-effect reference switch, for 5 optics ø 45 mm

46.605.516C FRM 65-5-D51-HSM

filter wheels with step motor and Hall-effect reference switch, for 5 optics ø 50.8 mm (2")

46.605.45GC FRM 65-5-D45-HiDS

filter wheels with DC servo motor and Hall-effect reference switch, for optics ø 45 mm

46.605.51GC FRM 65-5-D51-HiDS

filter wheels with DC servo motor and Hall-effect reference switch, for 5 optics ø 50.8 mm (2")

69.914.4020 G 45-20-D40

mounts ø 45 x 20 mm, for slack optics ø 40 mm / 38.1 mm (1.5"), with clamping ring

16.024.0090 RT 65-4-90-M6

slide RT 65-4, 90 mm, with hexagon socket head cap screws

STF 15

pin 15 - s. product information STF 15
