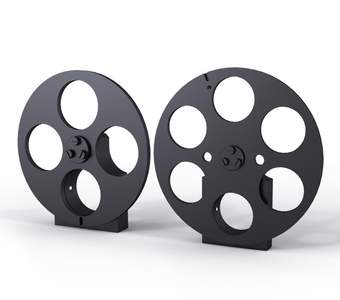

Filter Wheels FR 40

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_fr_40.pdf

Description

The FR 40 filter wheels allow manual change of four or six filters. It is possible to glue unmounted filters with
ø 25 mm (1") or ø 25 mm mounted optics in holder inserts. The aperture is 23 mm, respectively. They were glued into the filter wheels.

The FR 40 filter wheels can be mounted on SYS 40 slides. Using the ADP-S65-S40-20 adapter plates, they can be fitted to SYS 65 slides. Beside the manual versions, they are available as FRM 40 with a 2-phase step motor or a DC servo motor.

Delivery does not include holder inserts for filters.

Filter wheels with other number of filters on request.

  • for use with SYS 40 or SYS 65
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • for four or six filters
  • way of installing
    - on slide RT 40 oder RT 65 with ADP-S65-S40-20

Option
- vacuum-prepared versions available

Art. Nbr. Type Title
36.404.2500 FR 40-4-D25

filter wheels, manual, for 4 optics ø 25 mm (1")

36.406.2500 FR 40-6-D25

filter wheels, manual, for 6 optics ø 25 mm (1")

14.630.9002 OHU-FR40-D25

holder insert for unmounted optics ø 25 mm / 25.4 mm (1")

14.630.9001 OH-FR 40-D25

holder insert for mounted optics ø 25 mm

14.021.0020 RT 40-20-R

slide SYS 40, 20 mm, with knurled screw

14.022.0020 RT 40-20-M3

slide RT 40, 20 mm, with hexagon socket head cap screw

16.021.0020 RT 65-20-R

slide SYS 65, 20 mm, with knurled screw

16.022.0020 RT 65-20-M4

slide RT 65, 20 mm, with hexagon socket head cap screw

16.900.0003 ADP-S65-S40-20

adapter plate SYS 65 on SYS 40, 20 mm width
