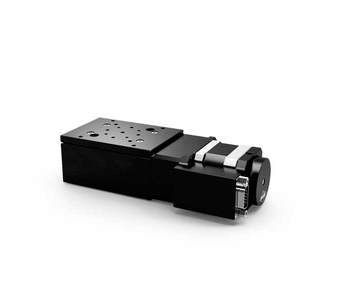

Elevator Stages HVM 60

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_hvm_60.pdf

Description

The proven elevator stages of the HVM 60 series have low height and high repeatability.

The special guides provide practically slip-stick free movement as well as high load capacity.

All aluminium parts have a top-quality black anodized protective coating.

  • travel up to 12 mm
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • low heigh
  • designed for industrial applications
  • preloaded cross roller guides
  • Hall-effect limit switches
  • 2-phase step motor or DC motor with encoder
  • mit OWISid

Option
- vacuum-prepared versions available

Art. Nbr. Type Title
42.060.016C HVM 60-12-HSM

elevator stage with 12 mm travel, 2-phase step motor and Hall-effect limit switches

42.060.01GC HVM 60-12-HiDS

elevator stage with 12 mm travel, DC geared motor with encoder and Hall-effect limit switches

90.999.0011 SST.F11

grease for spindle, 5 ml in applicator
