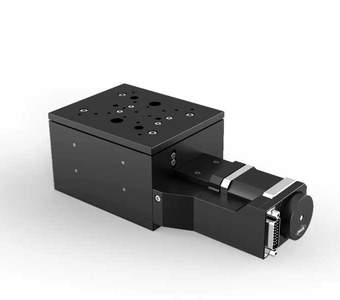

Elevator Stages HVM 100N

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_hvm_100n.pdf

Description

The proven HVM 100N elevator stages have a low height and a high repeatability. The special guides provide practically slip-stick free movement as well as high load capacity. All aluminium parts have a top quality black anodized protective coating.

  • travel up to 30 mm
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • low height
  • designed for industrial application
  • preloaded cross roller guides
  • Hall-effect or mechanical limit switches
  • 2-phase step motor or DC motor with encoder
  • with OWISid

Options
- vacuum-prepared versions available

Art. Nbr. Type Title
42.N00.30AV HVM 100N-30-HiSM

Elevator Stage with 30 mm travel, 2-phase step motor and Hall-effect limit Switches.

42.N00.30BV HVM 100N-30-MiSM

Elevator Stage with 30 mm travel, 2-phase step motor and mechanical limit Switches.

42.N00.30GJ HVM 100N-30-HiDS

Elevator Stage with 30 mm travel, DC motor with encoder and Hall-effect limit Switches.

42.N00.30WJ HVM 100N-30-MiDS

Elevator Stage with 30 mm travel, DC motor with encoder and mechanical limit Switches.
