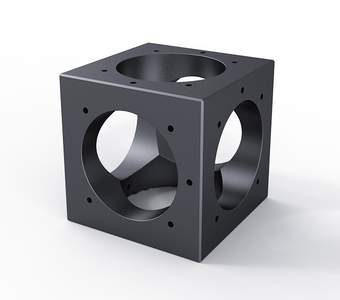

Cubes W 65

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_w_65.pdf

Description

W 65 cubes are useful particularly for multidimensional setups.

Adjustable inserts JT 65F and JT 65T for beamsplittings and deflections as well as lenses, filters, drilled apertures etc. can be mounted.

Adapters permit cubes to be combined with products of other manufacturers.

When mounted on system rails S 65 LL with slides RT 65, the height of the optical axis is 65 mm.

  • for use with SYS 65
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • wide field of application

Option
- non-magnetic or vacuum-prepared versions available

Art. Nbr. Type Title
16.120.0001 W 65

cube for SYS 65

16.129.0001 BD-W65

blank cover for W 65 series cubes

16.129.0002 VL-W65

connecting plate for W 65 series cubes

16.129.0003 VW-W65

assembly angle for W 65 series cubes

16.900.0002 ADP-S65-S40

adapter ring for SYS 40 components to W 65

16.021.0065 RT 65-65-R

slide SYS 65, 65 mm, with knurled screw

16.022.0065 RT 65-65-M4

slide SYS 65, 65 mm,

with hexagon socket head cap screw

16.021.1065 RT 65-65-R-D35

slide SYS 65, 65 mm, with aperture ø 35 mm,

with knurled screw

16.022.1065 RT 65-35-M4-D35

slide SYS 65, 65 mm, with aperture ø 35 mm,

with hexagon socket head cap screw
