Cubes W 40

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_w_40.pdf

Description

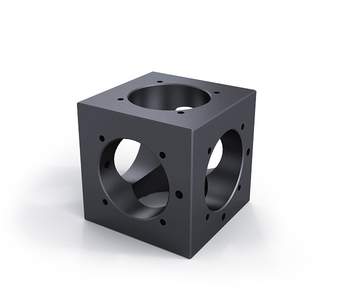

W 40 cubes are useful particularly for multidimensional setups.

Adjustable inserts JT 40T for beamsplittings and deflections as well as lenses, filters, drilled apertures etc. can be mounted.

Adapters permit cubes to be combined with products of other manufacturers.

When mounted on system rails S 40 LL with slides RT 40, the height of the optical axis is 40 mm.

  • for use with SYS 40
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • wide field of application
  • extensive accessories

Option
- non-magnetic or vacuum-prepared versions available



Art. Nbr. Type Title
14.120.0001 W 40

cube for SYS 40

14.129.0001 BD-W40

blank cover for W 40 series cubes

14.129.0002 VL-W40

connecting plate for W 40 series cubes

14.129.0003 VW-W40

assembly angle for W 40 series cubes

14.190.0004 RMS 40-OV

RMS adapter flange

14.190.0025 RMS 40

RMS optic holder

14.190.0006 LF 40-D22

light trap

14.190.0001 TUB 40-KR

convection tube

14.190.0002 TUB 40-OT

ocular tubus

14.190.0003 TUB 40-OF

tube without flange

14.021.0040 RT-40-40-R

slide SYS 40, 40 mm, with knurled screw

14.022.0040 RT 40-40-M3

slide SYS 40, 40 mm, with hexagon socket head cap screw

14.021.0080 RT 40-80-R

slide SYS 40, 80 mm, with knurled screws

14.022.0080 RT-40-80-M3

slide SYS 40, 80 mm, with hexagon socket head cap screw
