Cubes W 25

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_w_25.pdf

Description

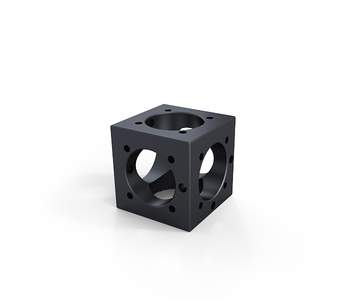

W 25 cubes are useful particularly for multidimensional applications.

Adjustable inserts JT 25T for beamsplittings and deflections as well as lenses, filters, drilled apertures etc. can be mounted.

When mounted on system rails S 25 LL with slides RT 25, the height of the optical axis is 25 mm.

  • for use with SYS 25
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • wide field of application

Option
- non-magnetic or vacuum-prepared versions available

Art. Nbr. Type Title
12.120.0001 W 25

cubes for SYS 25

12.129.0001 BD-W25

blank cover for W 25 series cubes

12.022.0025 RT 25-25-M2,5

slide SYS 25, 25 mm, with hexagon socket head cap screw ISO 4762
