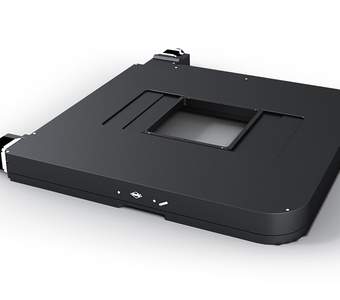

Compact High-Precision XY Stages CROSS 190

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_cross_190.pdf

Description

The XY stages of the CROSS series are characterized by their high accuracy and a low assembly height. For applications with transmitted light a square aperture is intended. They can be closed by an insert plate with assembly bores, if no aperture is necessary (optionally). The guides are lying at a wide distance from each other and allow a high moment of tilt in both X and Y direction.

The recirculating ball bearing guides and the ball screws are preloaded. They and the linear measuring systems (optionally) are securely placed inside the stage and enable exact and reliable positioning movements even under unfavourable ambient conditions. Thus, a high life time is reached in industrial continuous operation, as well.

Due to the continuously adjustable limit switches, the travel range can be variably defined.

Basic elements and covering of the XY stages are made of deformation-resistant aluminium and have a top quality black anodized protective coating.

  • particularly flat and compact design
  • exact positioning due to preloaded guides and backlash-free ball screws
  • large aperture for transmitted light applications
  • reducible travel, due to adjustable limit switches
  • designed for industrial applications
  • 2-phase step motor or DC servo motor with encoder
  • with OWISid

Option
- other anodized colours
- vacuum-prepared versions available

Art. Nbr. Type Title
48.648.19AE CROSS 190-HSM

compact high-precision XY stage, 190 mm travel, with step motor and Hall-effect limit switches

48.648.19BE CROSS 190-MSM

compact high-precision XY stage, 190 mm travel, with step motor and mechanical limit switches

48.648.19GJ CROSS 190-HiDS

compact high-precision XY stage, 190 mm travel, with DC servo motor and Hall-effect limit switches

48.648.19WJ CROSS 190-MiDS

compact high-precision XY stage, 190 mm travel, with DC servo motor and mechanical limit switches

48.647.0190 LMS-CROSS 190

linear measuring systems for CROSS 190

48.640.1190 ESP-190x190-G

insert plate, 11.4 mm thick, for PKTM 190 and CROSS 190

90.999.0011 SST.F11

grease for spindle, 5 ml in applicator

90.999.0002 SST.F2

grease for guides, 5 ml, in applicator
