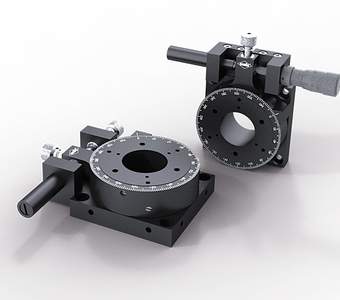

Angular Adjustment Stages WV 60

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_wv_60.pdf

Description

The WV 60 angular adjustment stages are suitable for combined coarse adjustment and high-resolution fine adjustment.

Their aperture allows transmitting components to be rotated around the optical axis.

Other rotational axes, including multi-dimensional configurations, can also be realized using the accessories.

  • for use with SYS 65
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • coarse and fine adjustment
  • with fine-thread screw or micrometer
  • for vertical and horizontal use
  • ways of installing
    – on optical tables with thread adapter M6-M4
    – on slide

Option
 - nonmagnetic versions available

Art. Nbr. Type Title
34.060.2501 WV 60-D25-FGS

angular adjustment stages, ø 25 mm retainer and aperture, with fine-thread screw

34.060.2502 WV 60-D25-MS

angular adjustment stages, ø 25 mm retainer and aperture, with micrometer

34.060.9000 ADP-WV60-M4

adapter plate for WV 60, without aperture, with M4

16.021.2025 RT 65-25-R-H

raised slide RT 65, 25 mm, with knurled screw
