Angular Adjustment Stages WV 40

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_wv_40.pdf

Description

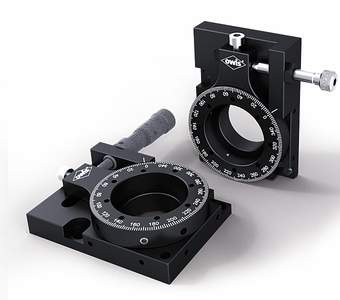

The WV 40 angular adjustment stages combine coarse adjustment (360°) with fine adjustment. By loosening the clamping screw on the adjustment hoop, the mounting inserts can be infinitely adjusted. When the clamping screw is tightened, the mounting inserts can be rotated 25° (±12.5°) with a micrometer resp. fine-thread screw.

When vertically mounted in SYS 40, the WV 40 enable with their 20 mm aperture the adjustment of mounted optics ø 25 mm / 25.4 mm (1").

A horizontal mounting in SYS 40 is possible with a RT 40-40 slide (upper edge WV 40, 5 mm below system height) or with the two RT 40-10-R-WV40 slides (upper edge WV 40, 10 mm below system height).

  • for use with SYS 40 • deformation-resistant aluminium
  • reflection-poor, black anodized
  • rough and fine adjustment
  • with fine-thread screw or micrometer
  • for vertical and horizontal use
  • ways of installing
    - on slide
    - with ADP 40-DTF on pin

Option
- vacuum-prepared versions available

Art. Nbr. Type Title
34.040.2001 WV 40-D25-FGS

angular adjustment stages, ø 25 mm retainer and ø 20 mm aperture, with fine-thread screw

34.040.2002 WV 40-D25-MS

angular adjustment stages, ø 25 mm retainer and ø 20 mm aperture, with micrometer

34.040.2601 WV40-D26-FGS

angular adjustment stages, ø 25 mm / 25.4 mm (1") retainer and ø 20 mm aperture, with fine-thread screw

34.040.2602 WV40-D26-MS

angular adjustment stages, ø 25 mm / 25.4 mm (1") retainer and ø 20 mm aperture, with micrometer

14.021.0020 RT 40-20-R

slide SYS 40, 20 mm, with knurled screw

14.021.0040 RT-40-40-R

slide SYS 40, 40 mm, with knurled screw

14.021.0011 RT 40-10-R-WV 40

2 slides SYS 40, 10 mm, with knurled screw, for WV 40 and KSH(M) 40

14.341.1302 ADP 40-DTF

pin adapter for MVT 40(B), MKT 40 und WV 40
